Air Deflector

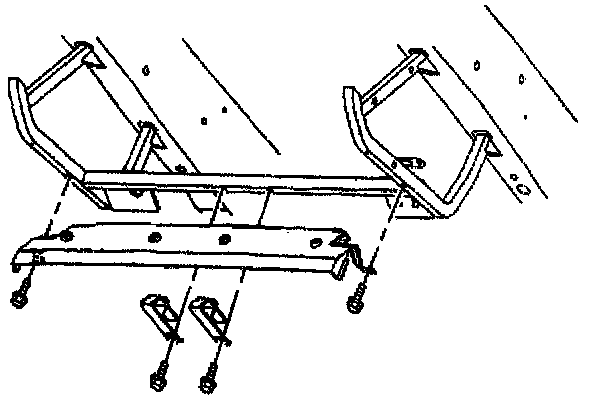

REMOVAL PROCEDURE

Air Deflector Replacement: Front Fascia - Removal Procedure:

1. Raise the vehicle and suitably support. Refer to Lifting and Jacking the Vehicle in General Information. Diagnostic Aids
2. Remove the attaching screws and the air deflector.

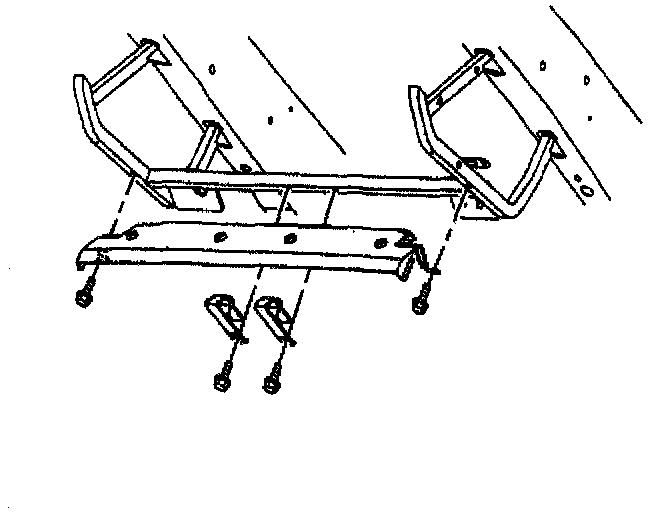

INSTALLATION PROCEDURE

Air Deflector Replacement: Front Fascia - Installation Procedure:

1. Position the center air deflector between the side valances.
2. Install the center air deflector and attaching screws.

Tighten
Tighten the air deflector screws to 7 N.m (62 lb in).
