Yaw Rate Sensor: Service and Repair

REMOVAL PROCEDURE
1. Turn the ignition switch to the OFF position.
2. Remove the IP Accessory Trim Plate refer to Trim Plate Replacement - IP Accessory in Instrument Panel, Gauges and Console.
3. Disconnect the Yaw Rate Sensor connector.

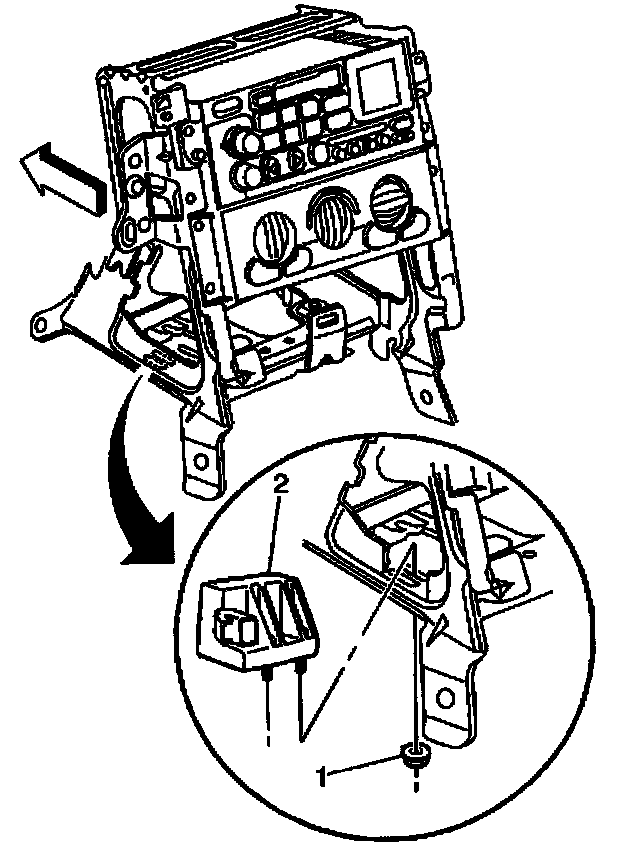

4. Loosen the two Yaw Rate Sensor nuts (1).
5. Remove the Yaw Rate Sensor (2).

INSTALLATION PROCEDURE





1. Install the Yaw Rate Sensor (2) onto the Yaw Rate Sensor Bracket.

NOTICE: Refer to Fastener Notice in Service Precautions.

- Tighten the two Yaw Rate Sensor nuts (1) to 6 Nm (5 ft. lbs.).

2. Connect the Yaw Rate Sensor connector.
3. Install the IP Accessory Trim Plate refer to Trim Plate Replacement - IP Accessory in Instrument Panel, Gauges and Console.
4. Turn the ignition switch to the ON position, engine off.
5. Perform the Diagnostic System Check (ABS).
