Fog/Driving Lamp Switch: Service and Repair

REMOVAL PROCEDURE
Perform the following steps to remove the fog lamp switch:

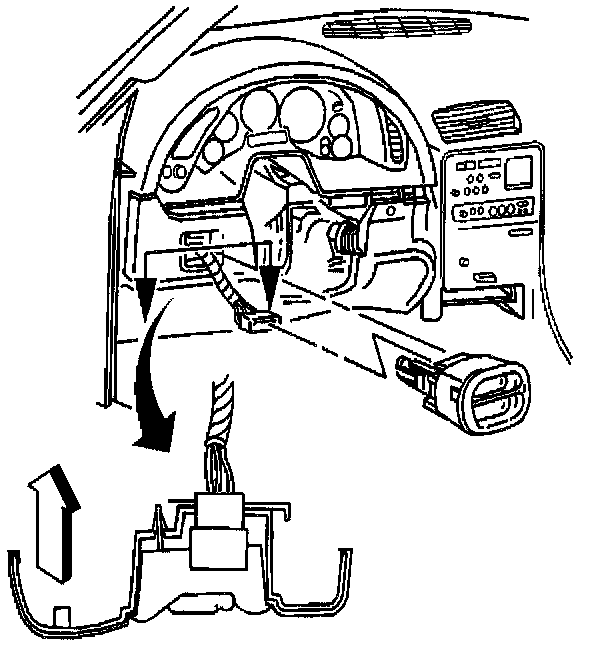

Fog Lamp Switch Replacement: Front - Removal Procedure:

1. Pry carefully at the lower edge of the fog lamp switch to release the locking tab.
2. Disconnect the electrical connector from the switch.
3. Remove the switch.

INSTALLATION PROCEDURE

Fog Lamp Switch Replacement: Front - Installation Procedure:

1. Connect the electrical connector to the fog lamp switch.
2. Install the switch.

Align the switch to the opening in the trim panel, then push to secure.
