Pressure Plate
Pressure Plate
Clutch Pressure Plate Bolts
63 Nm (47 ft. lbs.)

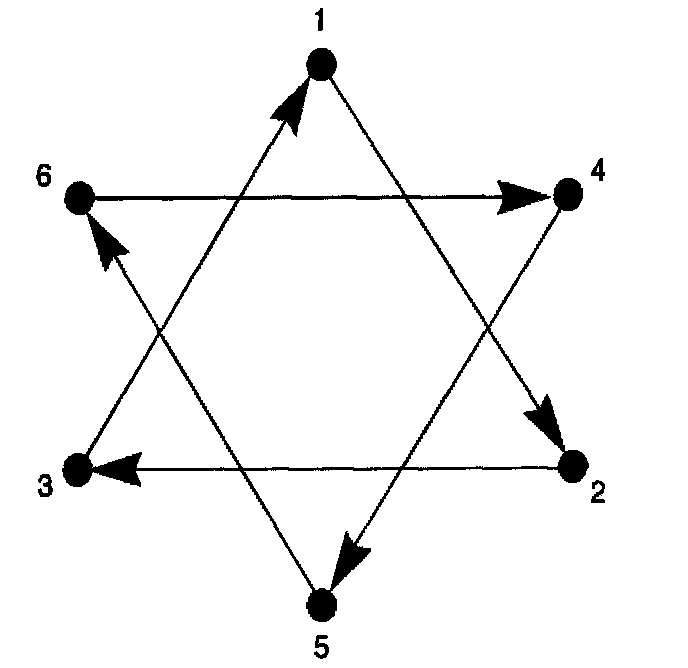

NOTE:
Must Be Tightened In Sequence, And In Even Increments Over Three Passes, Then Tightened To Final Specifications On Fourth Pass.
