Front Mounted EBTCM/BPMV

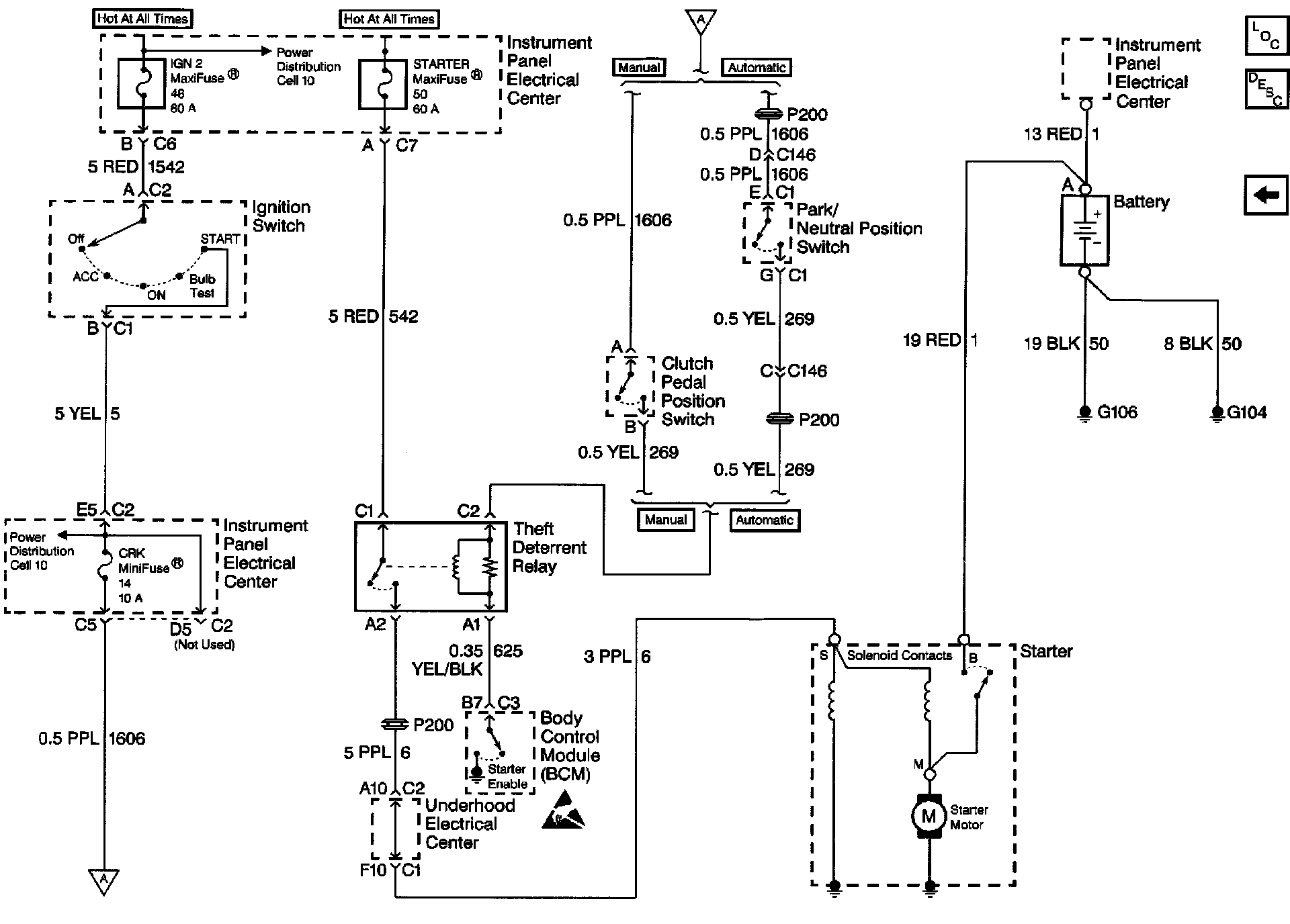

Starting And Charging Schematics (Front Mounted EBTCM/BPMV) (Starting System):
