Multifunction Turn Signal Lever

REMOVAL PROCEDURE





1. Remove the upper and lower steering column shrouds. Refer to STEERING COLUMN SHROUD REPLACEMENT.

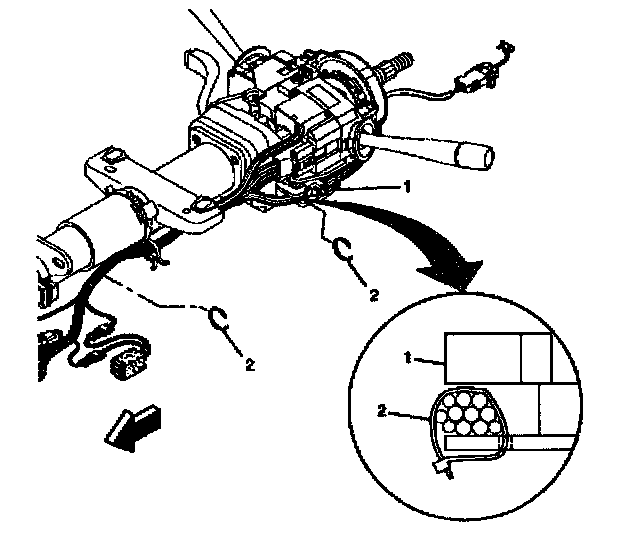

2. Remove the two wire harness straps (2). Remove one wire harness strap (2) from the steering column tilt head assembly (1).

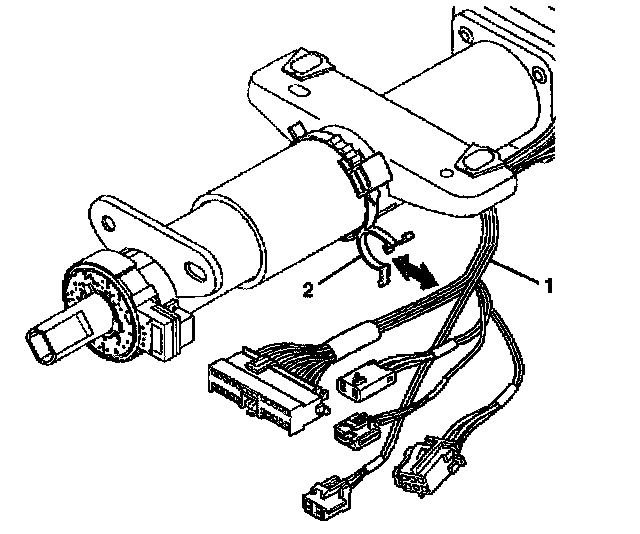

3. Remove the wire harness assembly (1) from the wire harness strap (2).

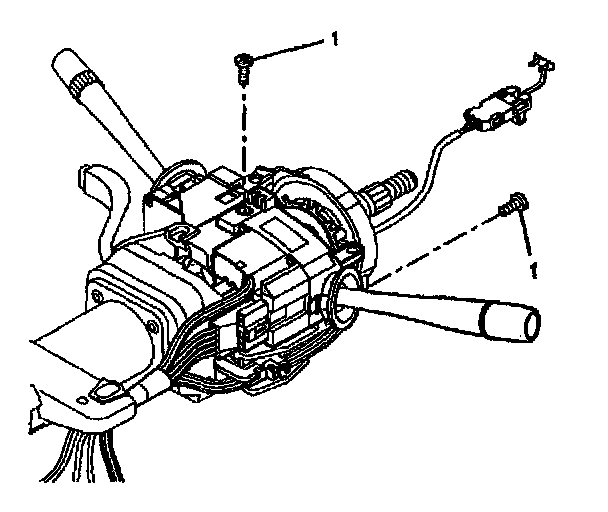

4. Remove the two tapping screws (1).

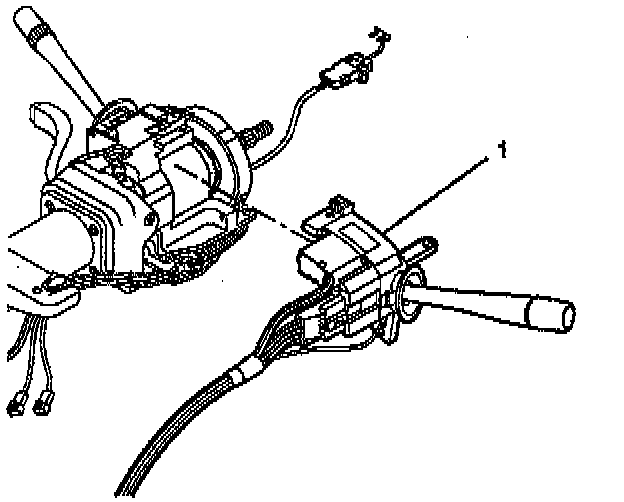

5. Remove the turn signal and multifunction switch assembly (1).

INSTALLATION PROCEDURE

Important: The electrical contact must rest on the turn signal cancel cam assembly.

1. Install the turn signal and multifunction switch assembly (1) to the steering column assembly.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the two pan head tapping screws (1).
- Tighten the screws to 7 Nm (62 inch lbs).

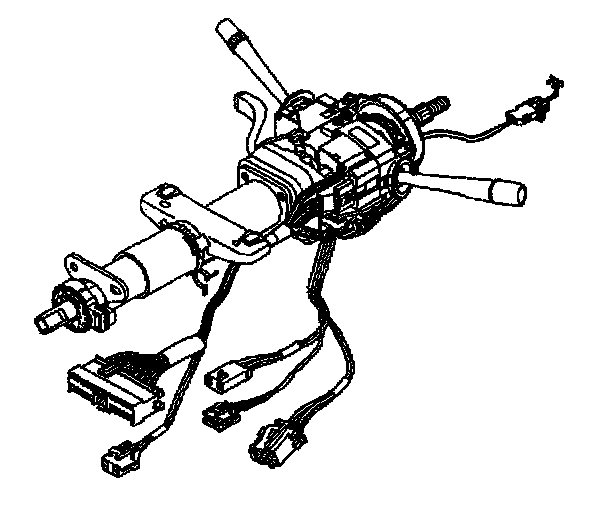

3. Route the wire harness assembly along the steering column jacket assembly.
4. Install the wire harness assembly (1) into the wire harness strap (2).
5. Install the wire harness straps (2) to the steering column assembly (1).
6. Install the upper and lower steering column shrouds. Refer to STEERING COLUMN SHROUD REPLACEMENT.
