Console Replacement

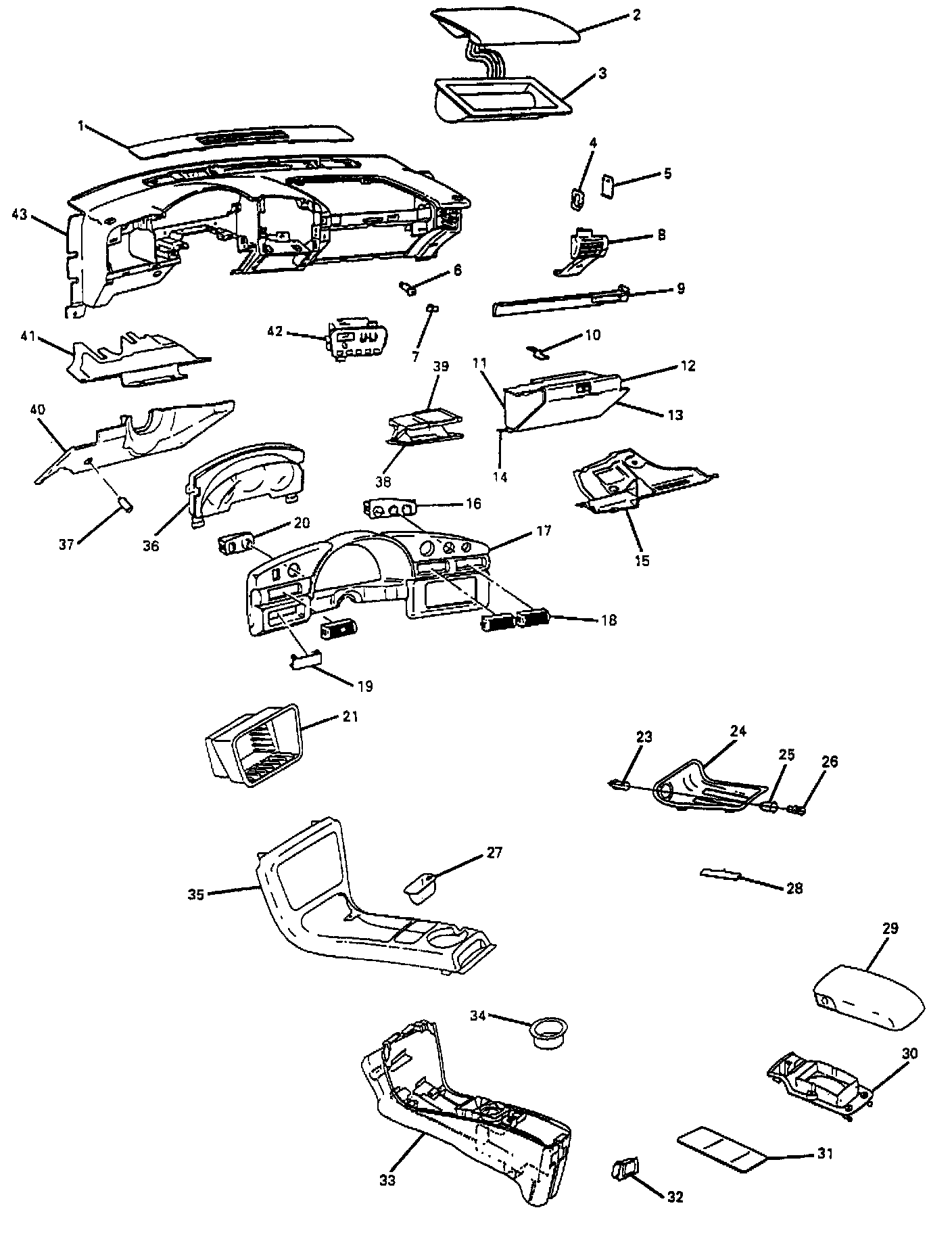

Instrument Panel And Front Floor Console:

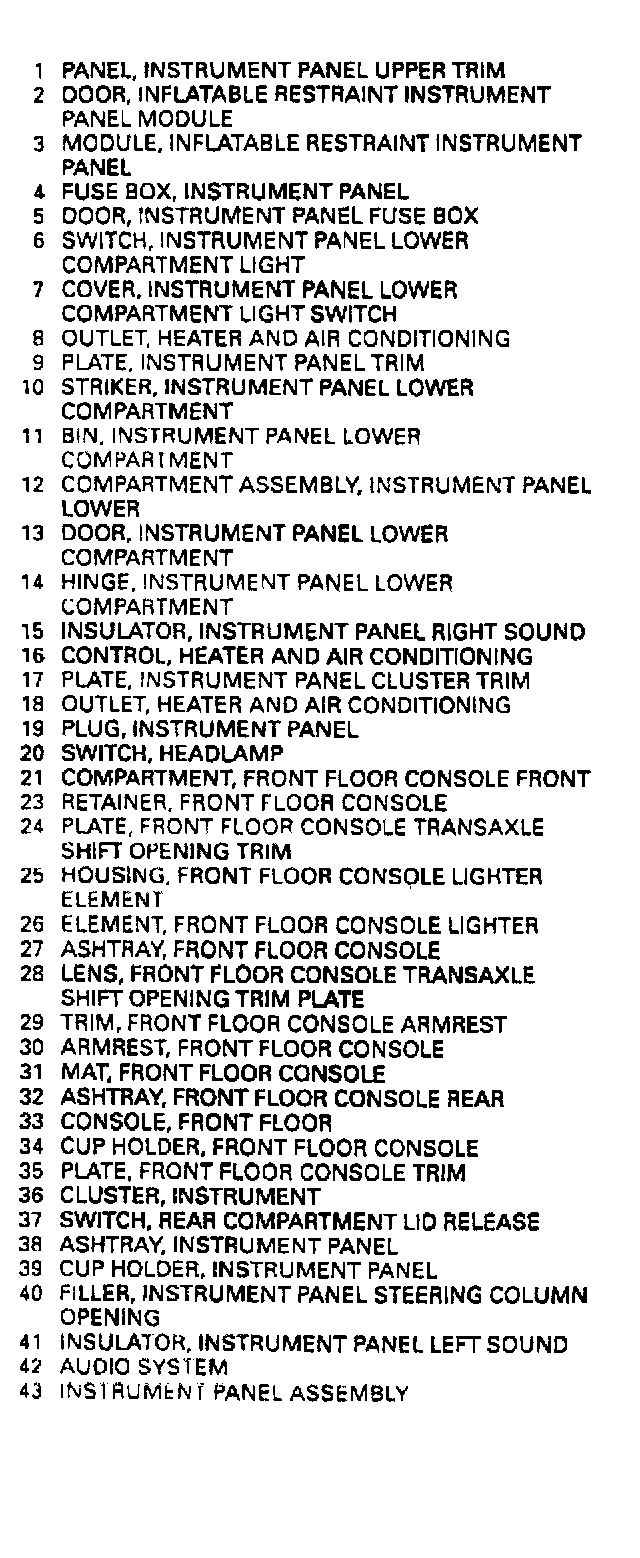

Instrument Panel And Front Floor Console Legend:

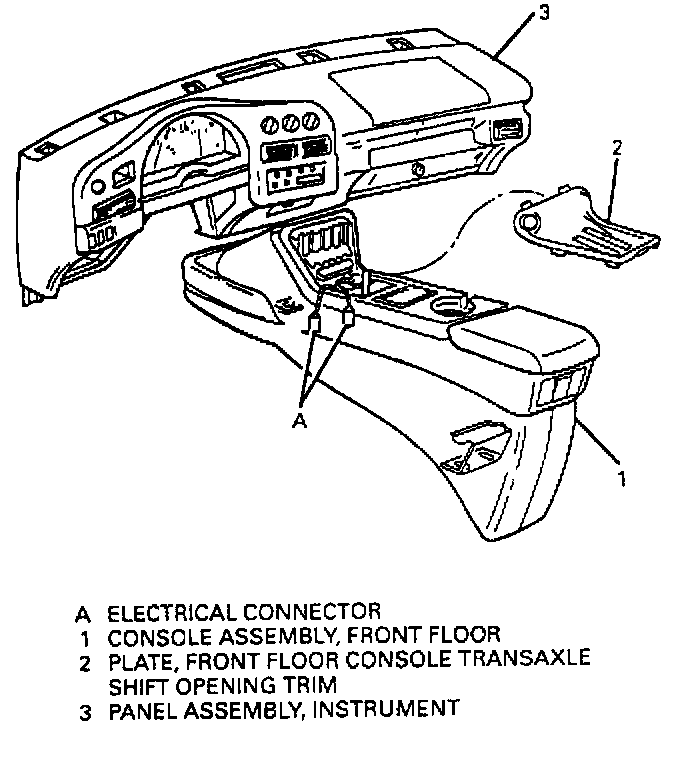

Front Floor Console:

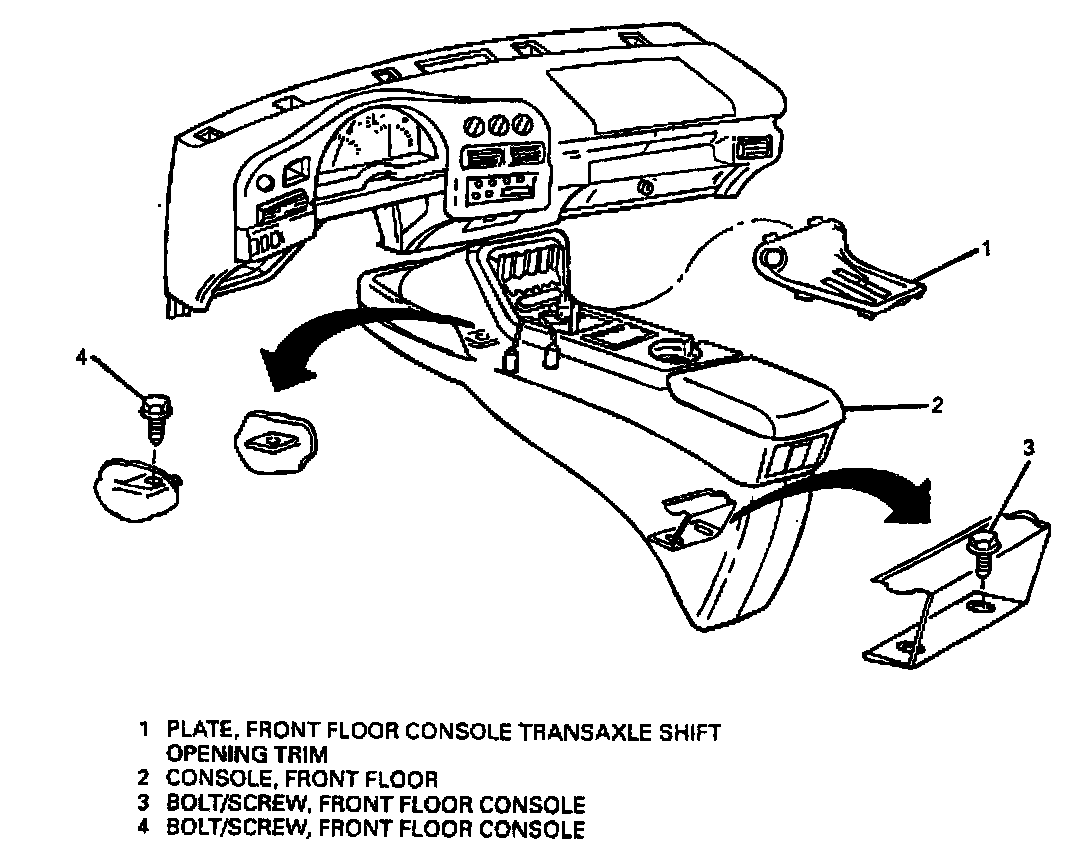

Front Floor Console Mounting:

CAUTION: Before removing or installing any electrical unit or when a tool or equipment could easily come in contact with "live" exposed electrical terminals, disconnect the battery ground (negative) cable to help prevent personal injury and/or damage to the vehicle or components. Unless instructed otherwise, the ignition switch must be in the "OFF" or "LOCK" position.

REMOVE OR DISCONNECT
1. Front floor console trim plate.
2. C/D storage compartment at front of front floor console by unsnapping.
3. Raise front floor console armrest.
4. Front floor console armrest compartment mat.
5. Bolts/screws from front floor console.
6. Electrical connectors.
7. Front floor console from vehicle.

INSTALL OR CONNECT
1. Position front floor console in vehicle.
2. Electrical connectors.
3. Bolts/screws to front floor console.
^ Begin with front right bolt/screw and continue in clockwise order.

Tighten
^ Bolts/screws to 12 N.m (106 lb. in.).

4. Front floor console armrest compartment mat.
5. Lower front floor console armrest.
6. C/D storage compartment to console by snapping into place.
7. Front floor console trim plate.
