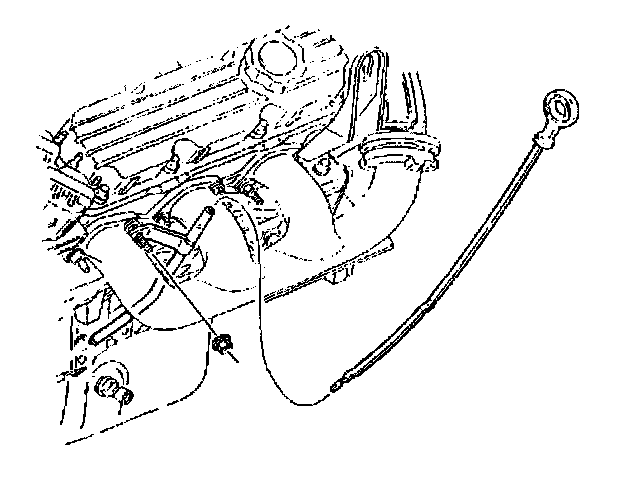

Oil Level Indicator and Tube Installation

1. Install the oil level indicator tube. Lubricate the 0-ring with engine oil and make sure it is in place. Make sure the assembly is fully seated in the engine block.
2. Install the oil level indicator tube nut.
^ Tighten the nut to 20 Nm (15 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
