Timing Chain and Sprockets Installation

^ Tools Required
- J36660 Torque Angle Meter

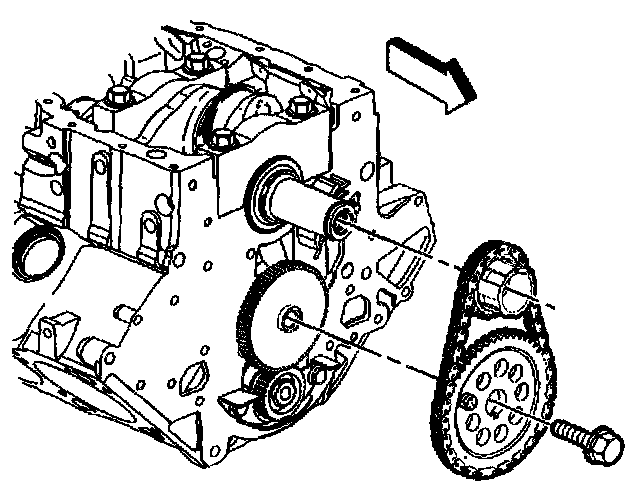

1. Install the timing chain on the sprockets. Align the timing marks.





2. Install the timing chain, the crankshaft sprocket, and the camshaft sprocket.

NOTICE: This bolt is designed to permanently stretch when tightened. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the camshaft sprocket bolt.
^ Tighten the camshaft sprocket bolt to 100 Nm (74 ft. lbs.). Use J36660 to tighten the camshaft sprocket bolt an additional 90 degrees.





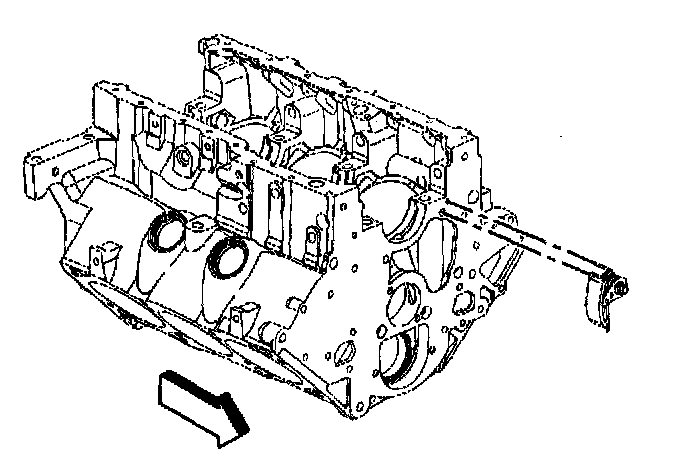

4. Install the timing chain dampener.
