Wiper Blade Element Replacement

REMOVE OR DISCONNECT
1. Wiper blade assembly (12) from wiper arm assembly (11). Refer to 'Wiper Blade Assembly Replacement."

Important
^ Wiper blade element must be replaced if removed from wiper blade assembly.
2. Wiper blade element (15) by pulling out through wiper blade assembly claws (D).

INSTALL OR CONNECT
1. Wiper blade element (15) to wiper blade assembly (12).

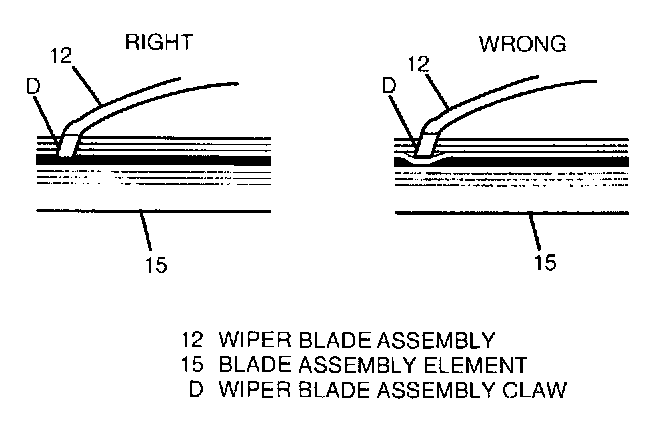

^ Slide wiper blade element (15) through wiper blade assembly claws (D) until claws (D) are locked into notches (F) in wiper blade element (15).
2. Wiper blade assembly (12) on wiper arm assembly (11)
