Engine Support Fixture

INSTALLATION PROCEDURE

^ Tools Required

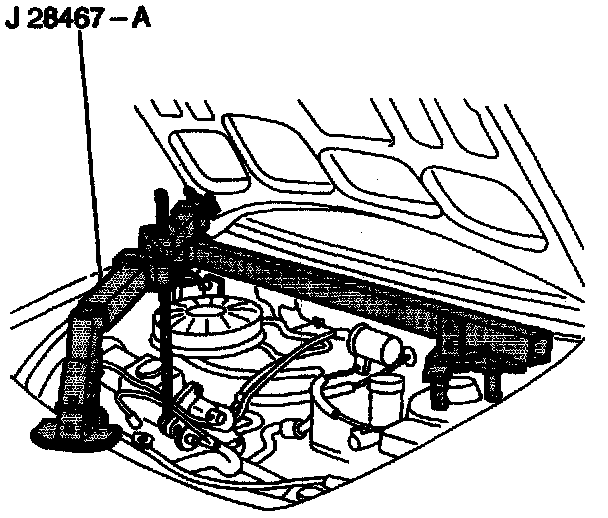

- J 28467-A Engine Support Fixture
- J 28467-89 Engine Support Fixture Adapter





1. Remove the hood.
2. Disconnect the negative battery cable.
3. Install the thread support nuts onto the strut attaching studs
4. Install the strut tower support assemblies.
5. Install the T-bolts with 5/16 inch washers through the strut tower support assemblies into the thread support nuts and hand tighten.
6. Install the two cross bracket assemblies over the strut tower tube.
7. Install the strut tower tube into the strut tower support assemblies.
8. Install the 1/2 inch x 2.5 inch quick release pin through the strut tower support assemblies and the strut tower tube on one side only.
9. Hand tighten the passenger side cross bracket assembly wing nuts.
10. Install the engine support adapter kit.
11. Hand tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
