Blower Motor Resistor: Service and Repair

Removal Procedure

1. Remove the powertrain control module.
2. Disconnect the blower motor resistor electrical connector.

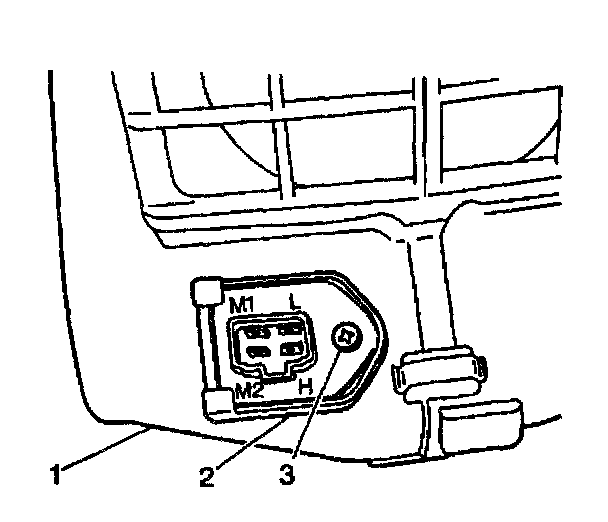

3. Remove the following components from the blower case:
^ The 1 screw (3)
^ The blower motor resistor (2)

Installation Procedure

1. Install the resistor (2) to the blower case. Secure the resistor with the 1 screw (3).
2. Connect the blower motor resistor electrical connector.
3. Install the PCM.
