Chevrolet
>>
1998
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>

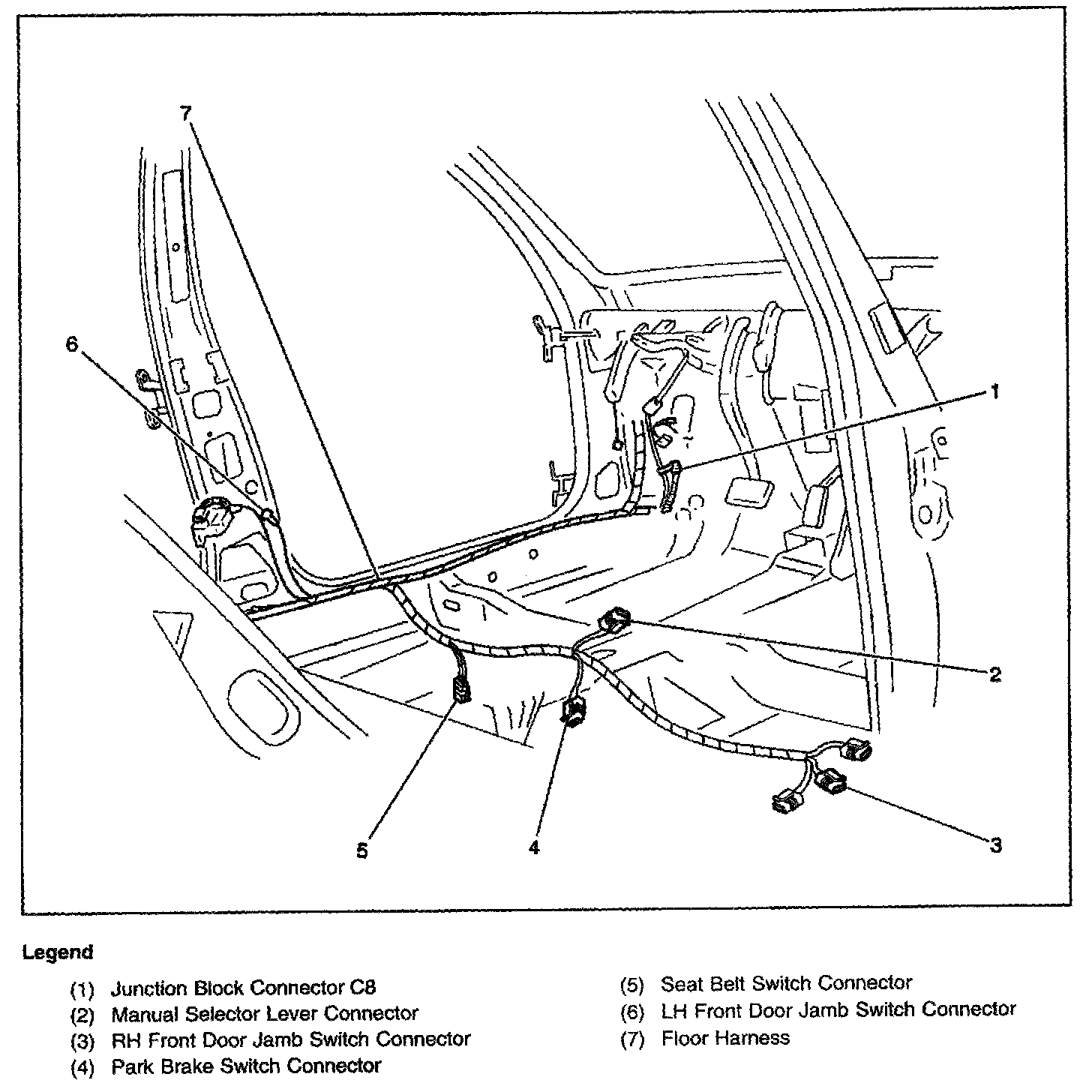

Junction Block Connector C8
Junction Block Connector C8
LH Front Passenger Compartment:
