Blade Element Set Check

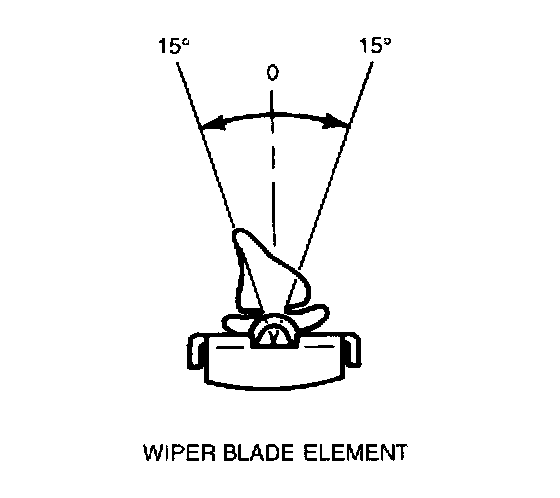

Remove wiper blade assemblies from wiper arm assemblies being sure to note orientation for reassembly (Refer to "Wiper Blade Assembly Replacement"). Look down the length of the wiper blade element. The rubber element which contacts the glass must be on the center line of the blade assembly +1-15 degrees. Replace the element if necessary. Service and Repair
