Steering Wheel Control Switch

REMOVAL PROCEDURE





1. Remove the radio control wire harness retainer.

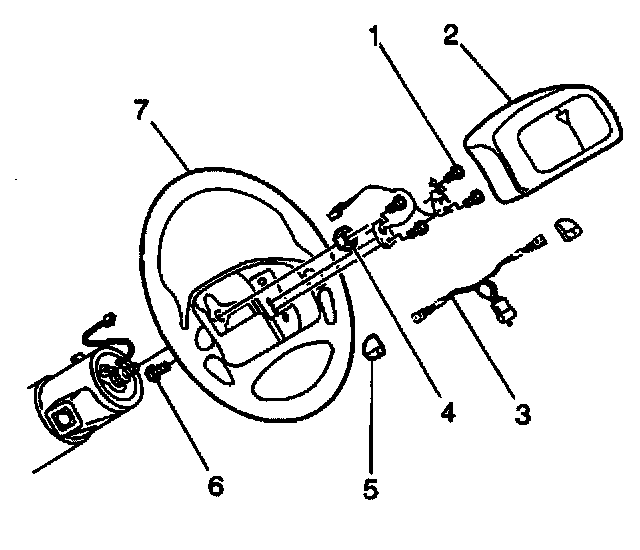

2. Pry out the radio control switch (5) at the lower edge.
3. Remove the radio control switch (5) from the steering wheel (7).
4. Remove the wire harness connector (3) from the control(s).

INSTALLATION PROCEDURE





1. Install the wire harness connector (3) to the control(s).
2. Install the radio control switch (5) to the steering wheel (7).
3. Install the radio control wire harness retainer.
