Shift Interlock Solenoid: Service and Repair

Removal Procedure





1. Remove the front floor console trim plate. Refer to Trim Plate Replacement - Console (Automatic) in Instrument Panel, Gauges and Warning Indicators.

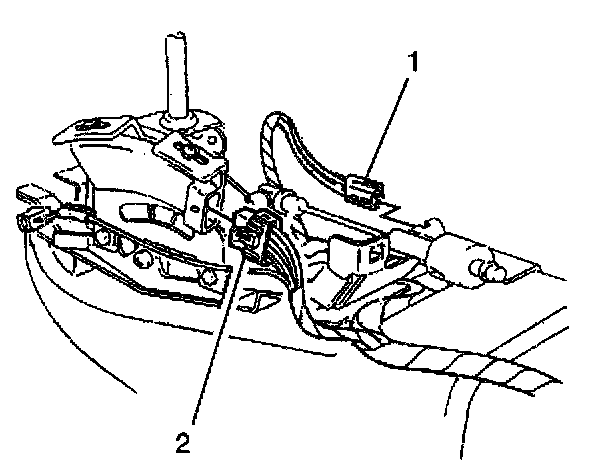

2. Disconnect the electrical connector from shift interlock solenoid.

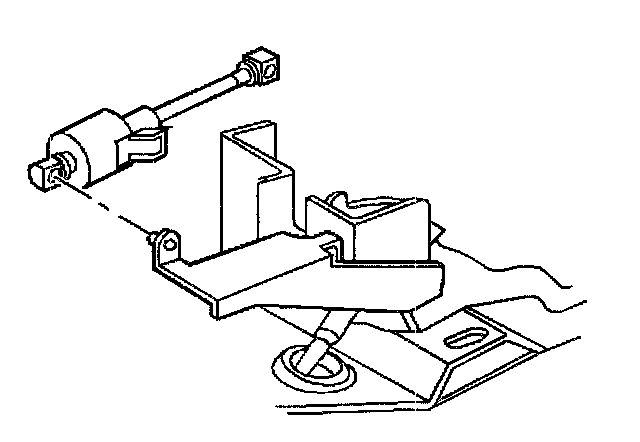

3. Remove the shift interlock solenoid by unsnapping the retainers.

Installation Procedure

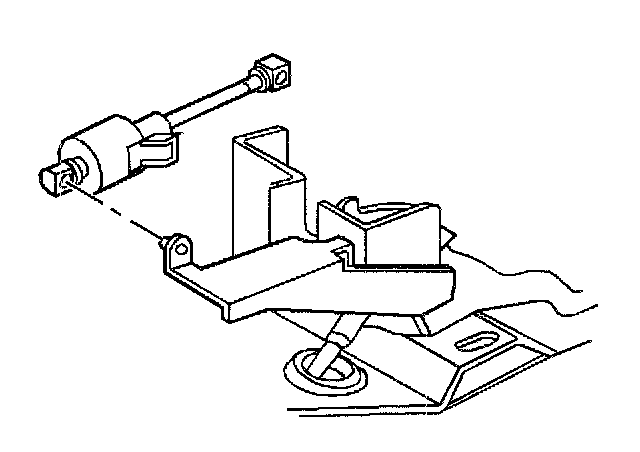

1. Install the shift interlock solenoid. Snap the retainers into place.

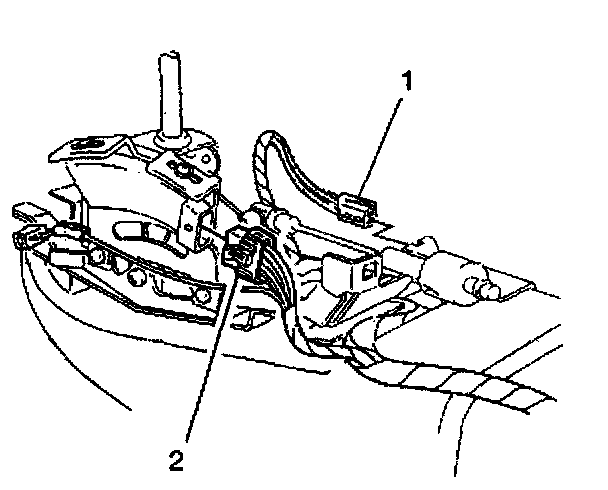

2. Connect the electrical connector to the shift interlock solenoid.
3. Install the front floor console trim plate. Refer to Trim Plate Replacement - Console (Automatic) in Instrument Panel, Gauges and Warning Indicators.
