Blower Motor Relay: Service and Repair

Blower Motor Relay Replacement

REMOVAL PROCEDURE
1. Remove the driver side I/P insulator.
2. Remove the knee bolster.

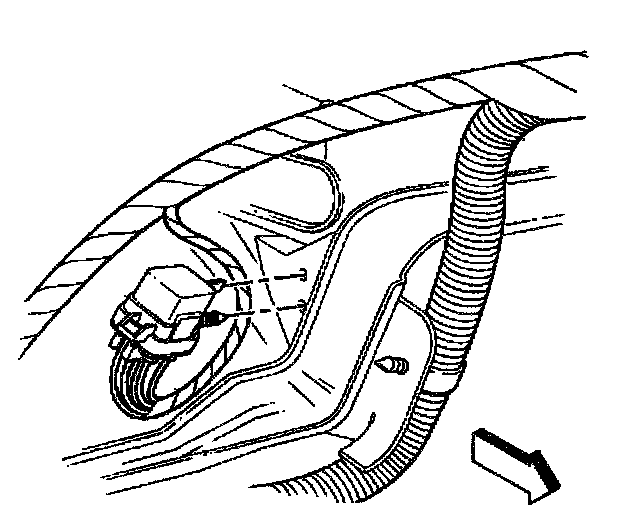

3. Remove the blower motor relay from the I/P tie bar.
4. Disconnect the electrical connector from the blower motor relay.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the blower motor relay.
2. Install the blower motor relay to the I/P tie bar.
3. Install the knee bolster.
4. Install the driver side I/P insulator.
