Automatic Transaxle-3T40

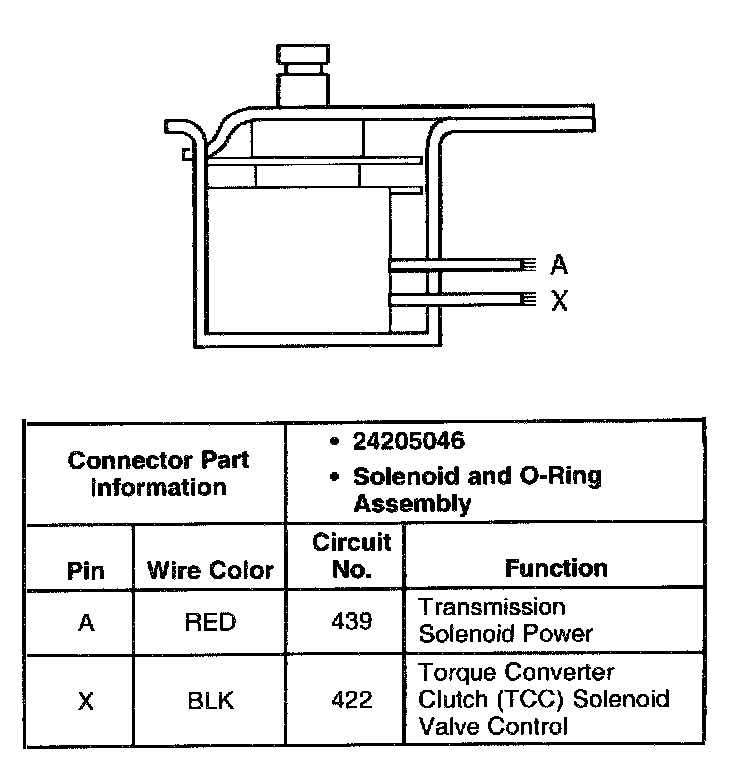

Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side
