Proportioning Valve Replacement

REMOVAL PROCEDURE

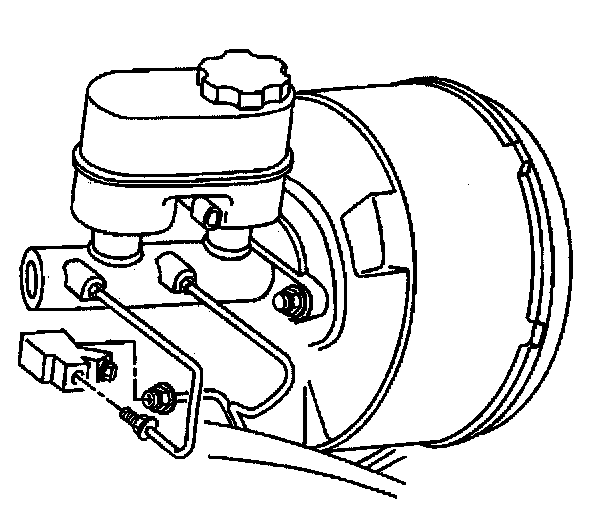

1. Disconnect the brake lines from the brake proportion valve.
2. Plug the brake pipes to prevent contamination.
3. Remove the brake proportion valve.

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.

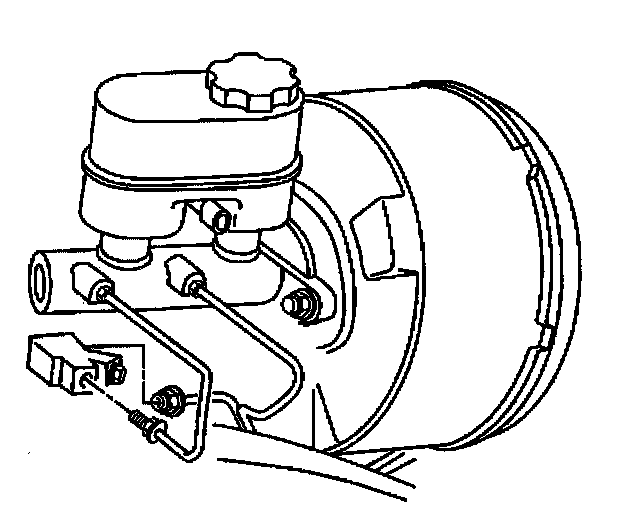

1. Install the brake proportioning valve to the brake pipes.

Tighten the brake pipe tube nuts to 18 Nm (13 ft. lbs.).

2. Refill the master cylinder reservoir.
3. Bleed the hydraulic brake system.
