Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
>>
Export
>>
Tail/Stop Lamp, LR
Tail/Stop Lamp, LR

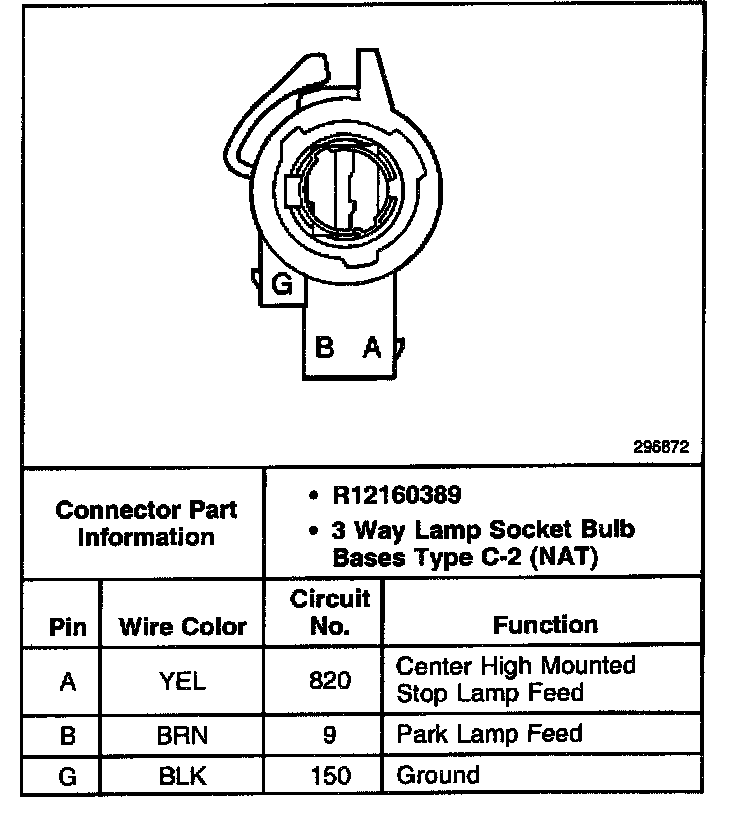

LR Tail/stop Lamp (Export):
