Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram >> Domestic >> LF

LF

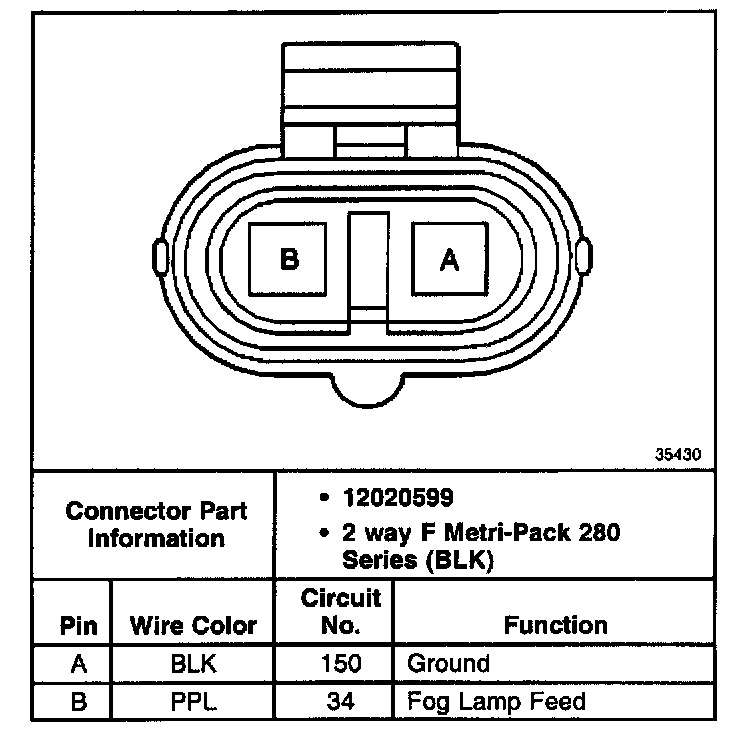

LF Fog Lamp (Domestic):
