Home >> Chevrolet >> 1999 >> Lumina V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Connector Views >> Outside Remote Control Rear View Mirror, C2

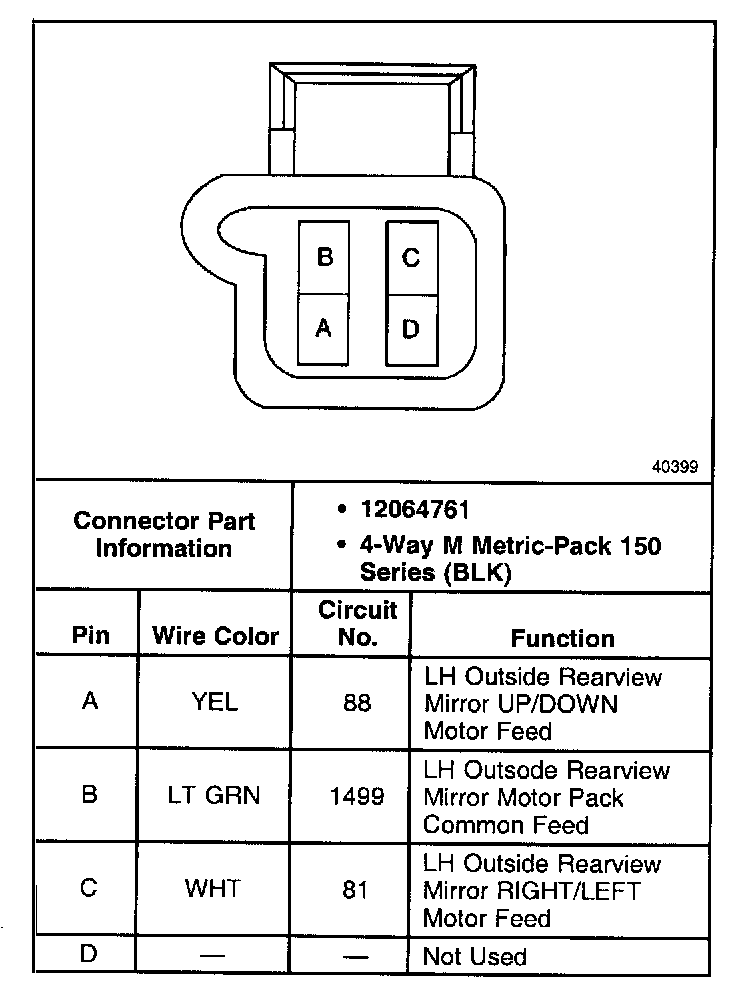

Outside Remote Control Rear View Mirror, C2

Outside Remote Control Rear View Mirror, C2:
