Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
>>
Rear
Rear

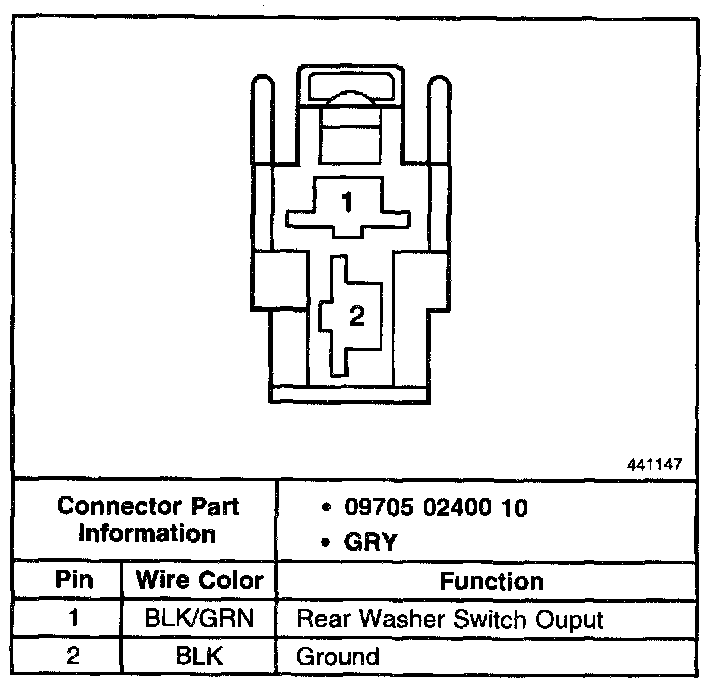

Rear Washer Pump:
