Fluid Filter - A/T: Service and Repair

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Place a drain pan or suitable container under the transaxle fluid pan.

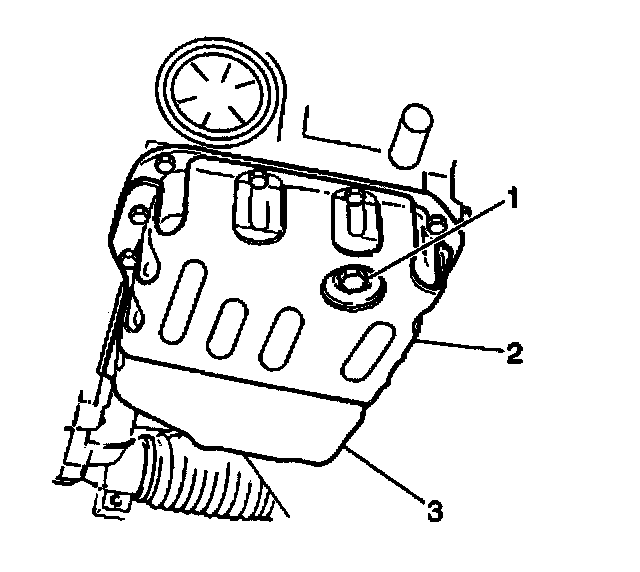

3. Remove the transaxle drain plug (1) from the transaxle fluid pan (3) and drain the transaxle fluid.

Important: Note the position of the two bolts with cross-recessed heads for proper installation.

4. Remove 15 bolts, the transaxle fluid pan guard (2), and the fluid pan from the transaxle.

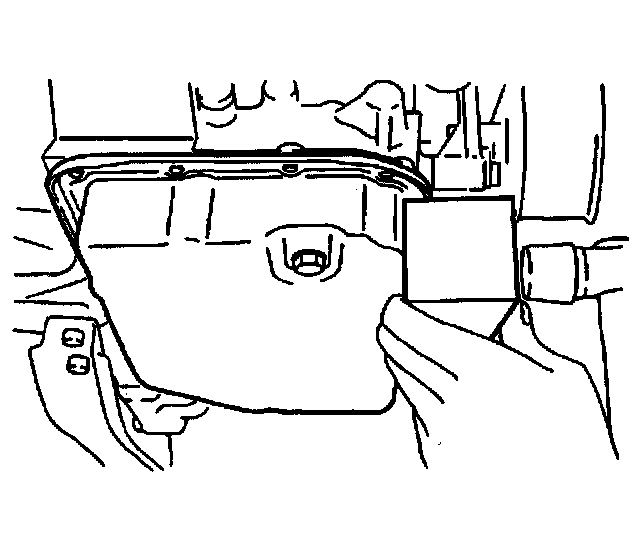

Notice: When removing the transaxle fluid pan, use caution in order not to damage the transaxle case-to-fluid pan mating surfaces. If the fluid pan is frozen to the transaxle case, use a rubber mallet and a wood block to lightly tap the fluid pan free. Do not attempt to pry the fluid pan away from the case with metal tools; damage to the case or fluid pan flange could result.

5. Remove the fluid pan gasket from the transaxle.

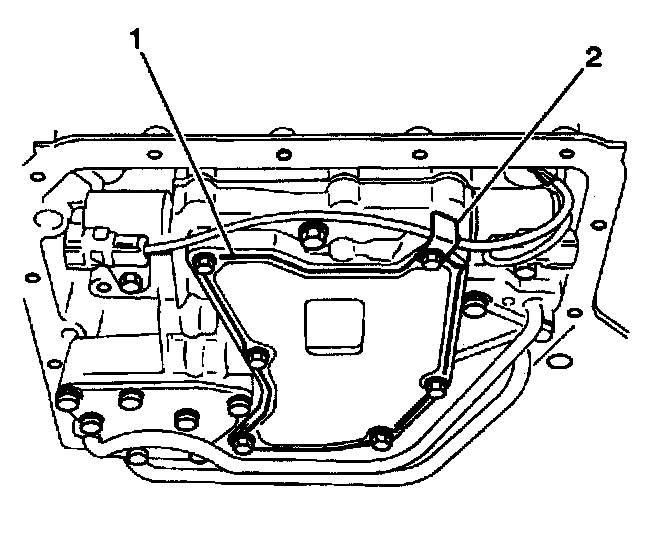

6. Remove 6 bolts and the fluid filter screen (1) from the valve body. Note the position of the solenoid wire clamp (2) for proper installation.

Important: A small amount of clutch material in the bottom of the transaxle fluid pan is a normal condition and is consistent with normal transaxle wear. The bottom of the fluid pan is equipped with a magnet that will collect minute metal filings. However, if large amounts of clutch material, metal shavings or other foreign matter are present, disassembly and inspection of the transaxle is indicated.

7. Inspect the bottom of the fluid pan for any large pieces of metal or other foreign matter.
8. Clean the fluid filter screen with solvent and dry thoroughly. If the screen mesh is damaged, replace the filter screen.

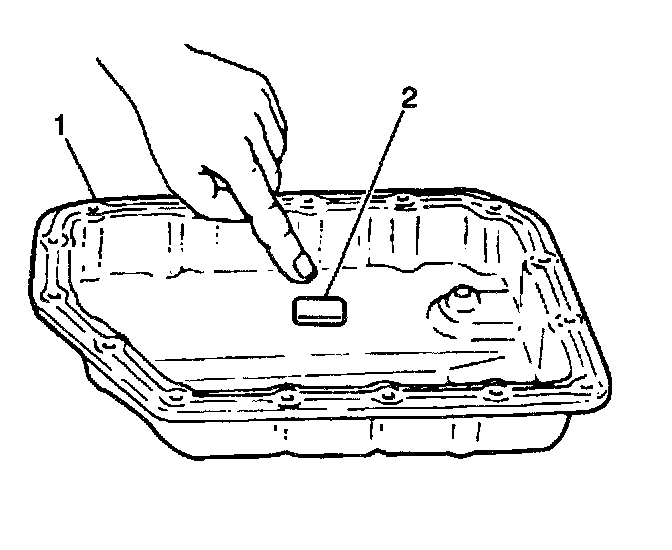

9. Clean the transaxle fluid pan magnet (2) and the bottom of the transaxle fluid pan (1).

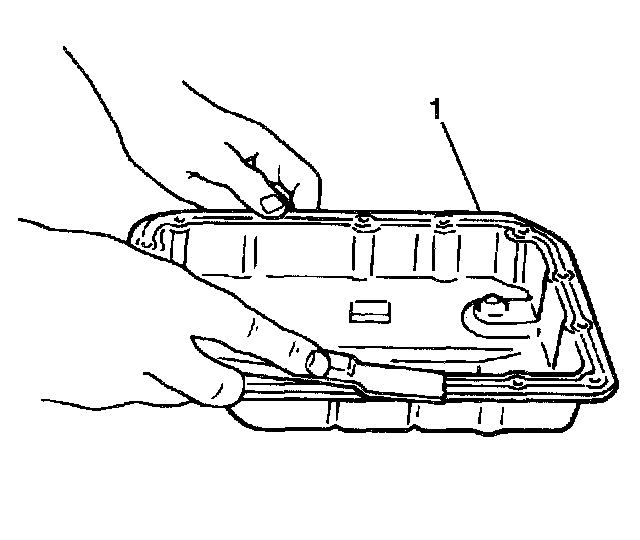

10. Clean the gasket material from the fluid pan-to-case mating surfaces (1).

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

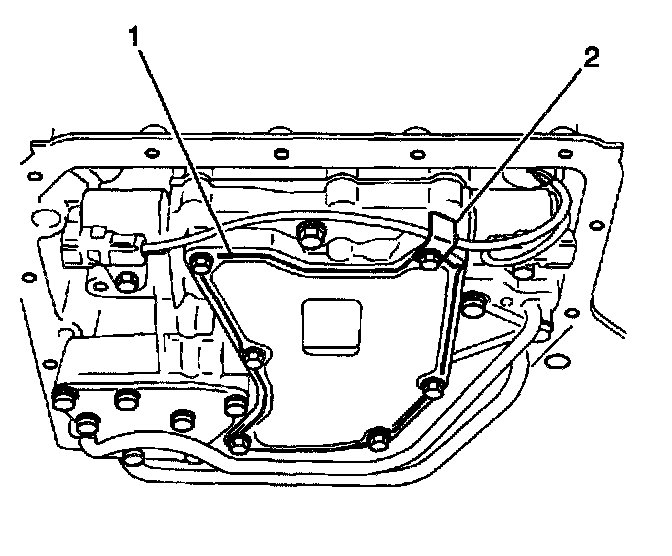

1. Install the fluid filter screen (1) to the valve body making sure the solenoid wire clamp (2) is in its correct position. Secure the screen with 6 bolts.
Tighten the fluid filter screen bolts to 6 Nm (53 inch lbs.).
2. Install the new fluid pan gasket on the transaxle fluid pan.

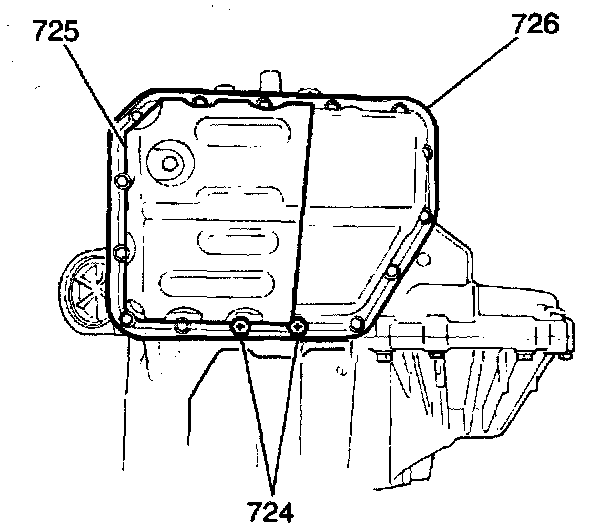

Important: The fluid pan contains 15 bolts in all. Two of them (724) have cross-recesses in their heads. Apply GM P/N 12346004, or the equivalent, to the threaded portion of these two bolts and install them in their proper positions. Do NOT apply the sealant to the remaining 13 bolts.

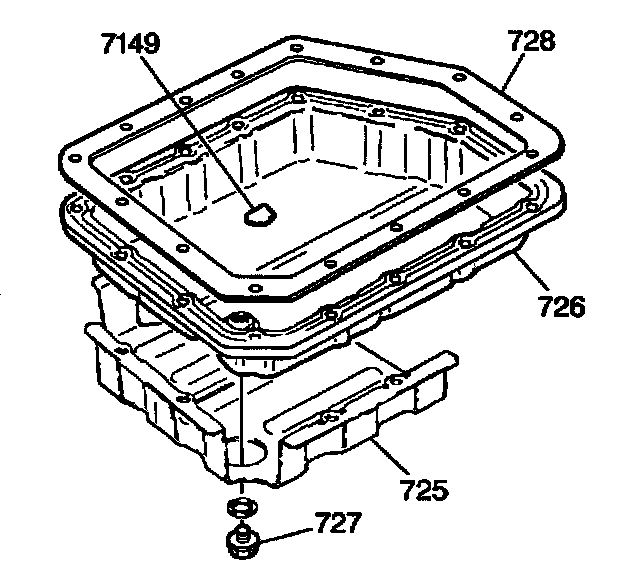

3. Install the new fluid pan gasket (728), the transaxle fluid pan (726), and the transaxle fluid pan guard (725) to the transaxle. Verify that both of the cross-recess bolts are in their correct positions. Secure the fluid pan components with 15 bolts.
Tighten the transaxle fluid pan bolts to 6 Nm (53 inch lbs.).
4. Install the transaxle pan drain plug into the fluid pan.
Tighten the transaxle drain plug to 23 Nm (17 ft. lbs.).
5. Remove the drain pan from under the transaxle fluid pan.
6. Lower the vehicle.
7. Refill the transaxle, as necessary. Refer to Transmission Fluid Checking Procedure.
