Oil Pan: Service and Repair
Oil Pan Replacement
Removal
1. Install the engine support fixture to the engine. Refer to Engine Support Fixture.
2. Disconnect the front brake pipes from the brake pressure modulator valve (BPMV).
3. Plug or cap the brake pipes and BPMV to prevent contamination.
4. Remove the starter motor.

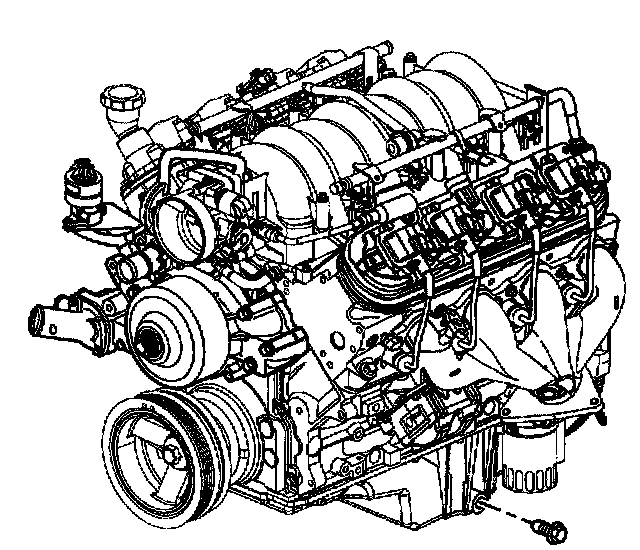

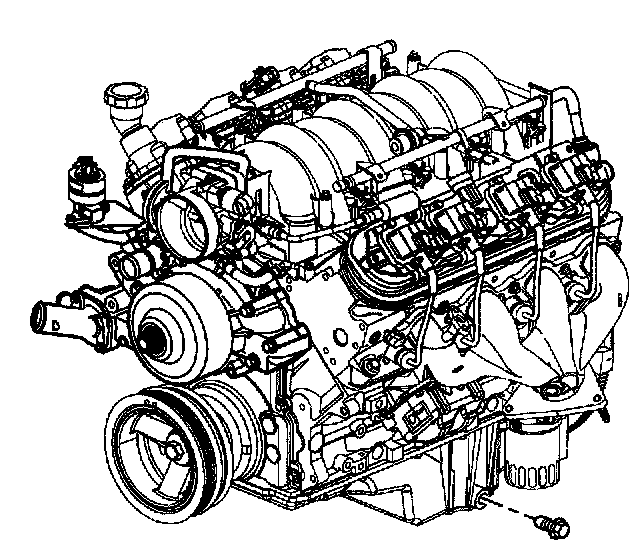

5. Remove the oil drain plug.
6. Drain the engine oil.

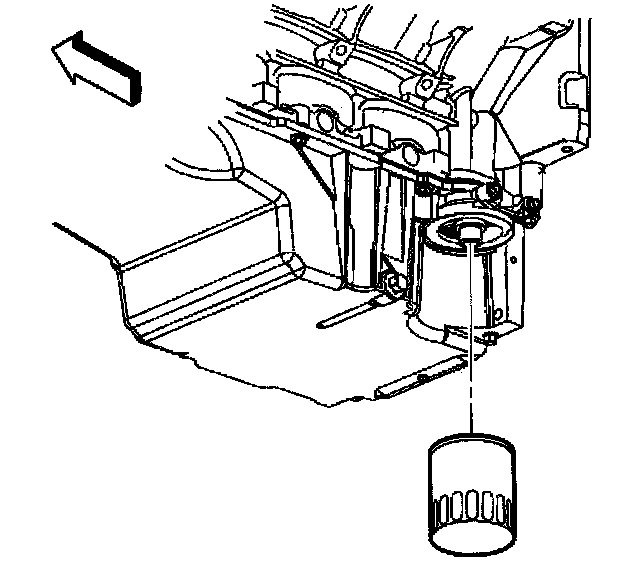

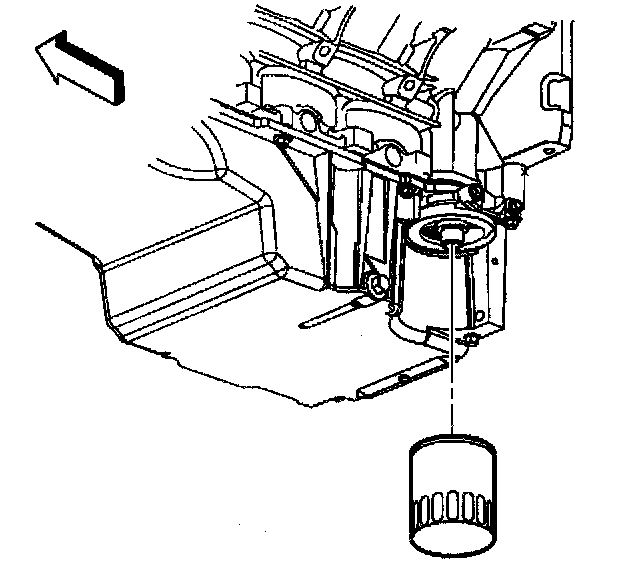

7. Remove the oil filter.

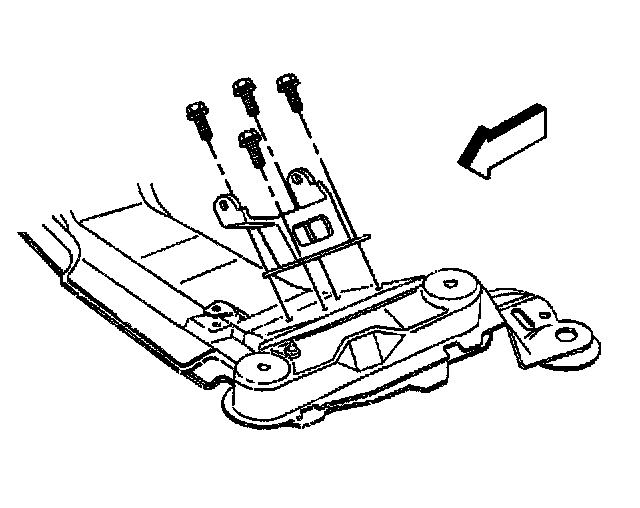

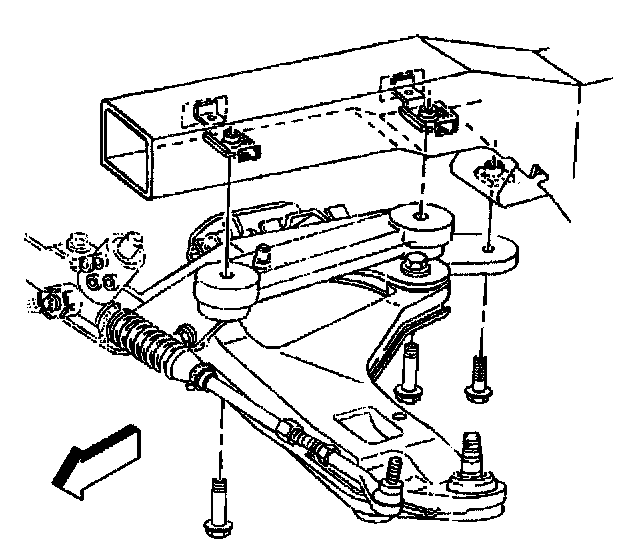

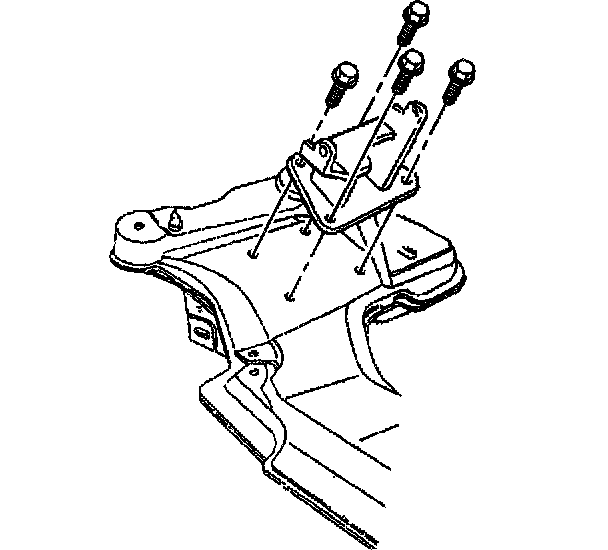

8. Remove the right side engine mount to cradle bolts.

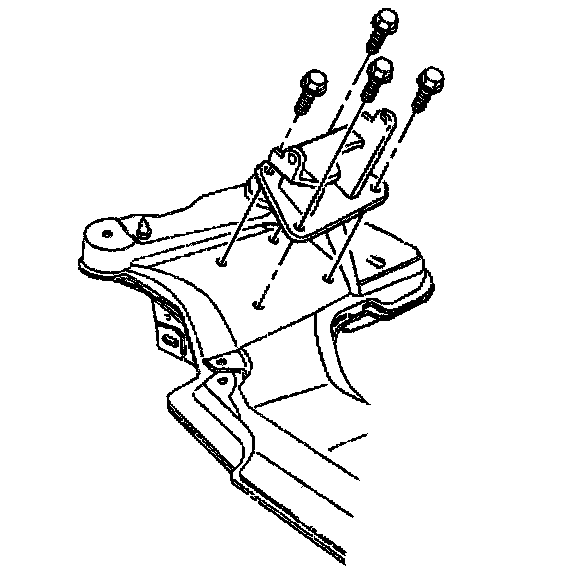

9. Remove the left side engine mount to cradle bolts.

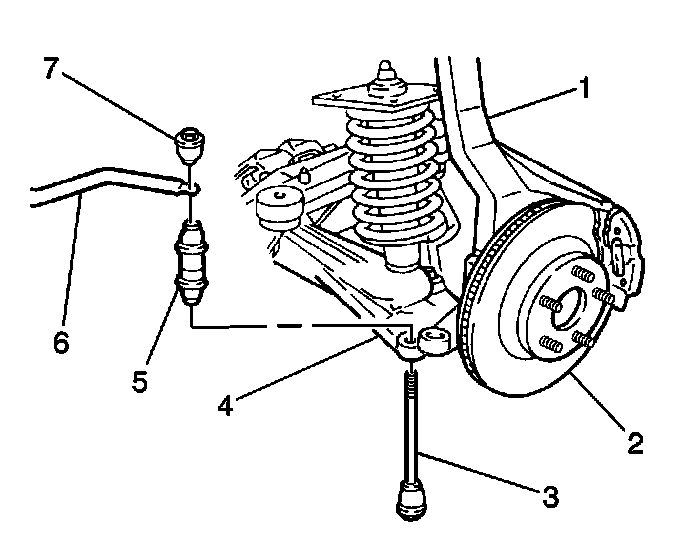

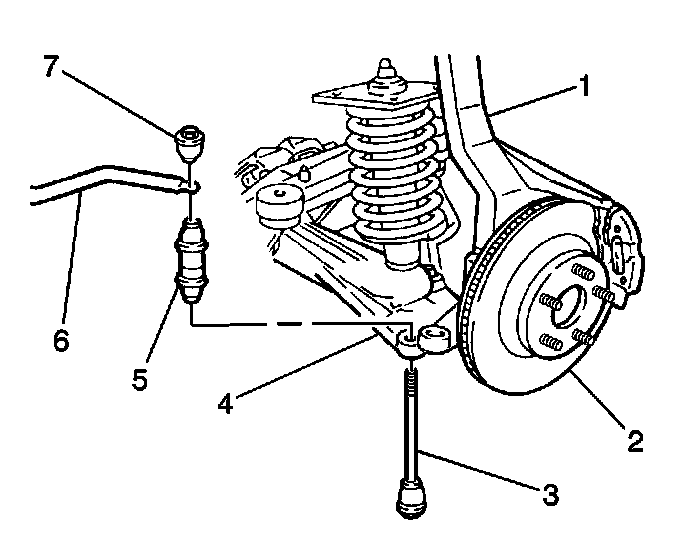

10. Remove the right and left end link nuts (7).
11. Remove the right and left end links (3) and sleeves (5).

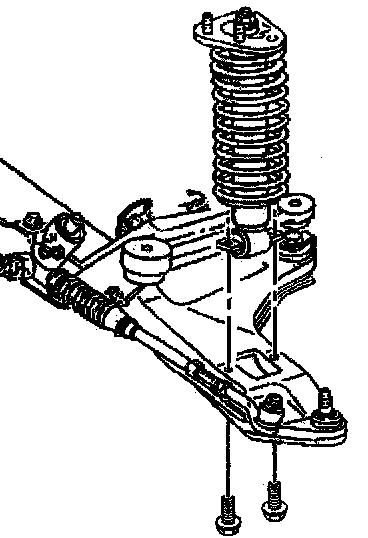

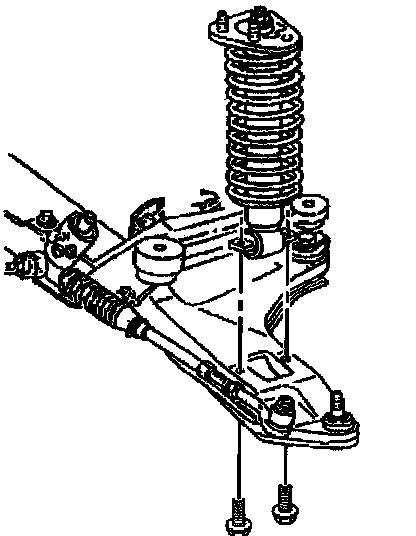

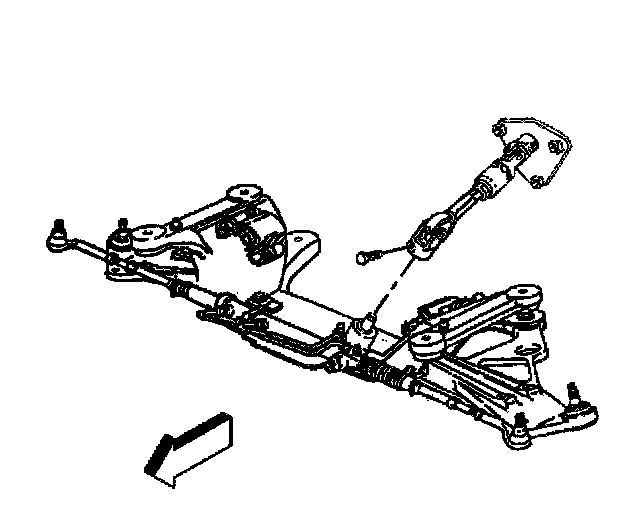

12. Remove the right and left side shock absorber lower mounting bolts.

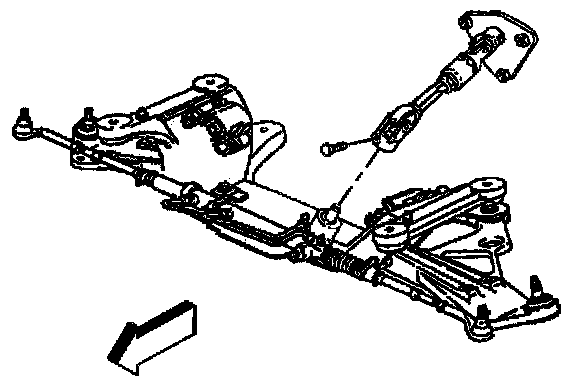

13. Remove the intermediate steering shaft bolt.
14. Position the steering shaft out of the way.

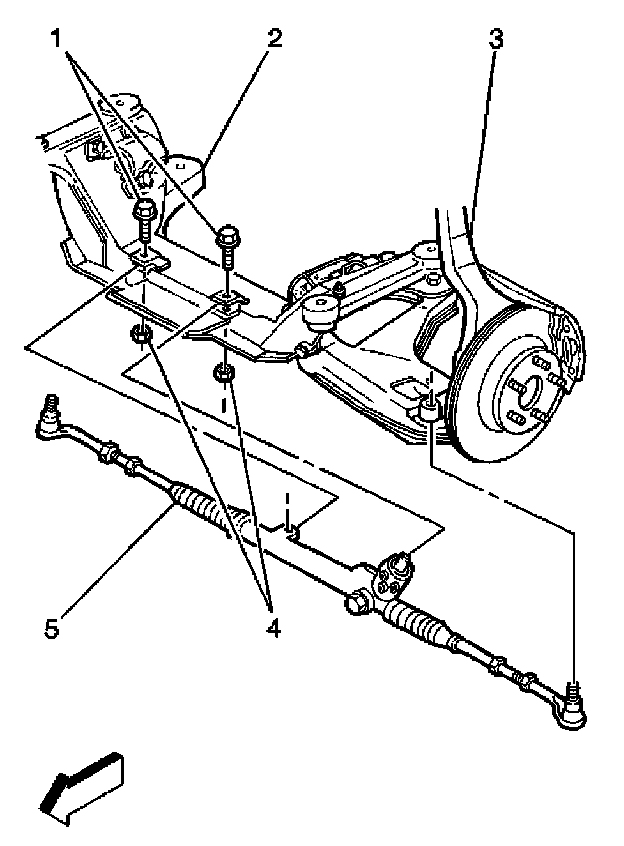

15. Remove the power steering gear nuts (4) and bolts (1).
16. Separate the gear from the crossmember and support.

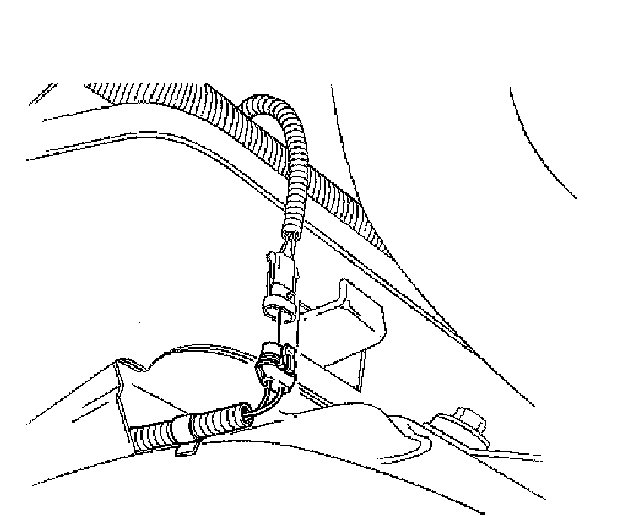

17. Disconnect the left and right side wheel speed sensor electrical connectors.

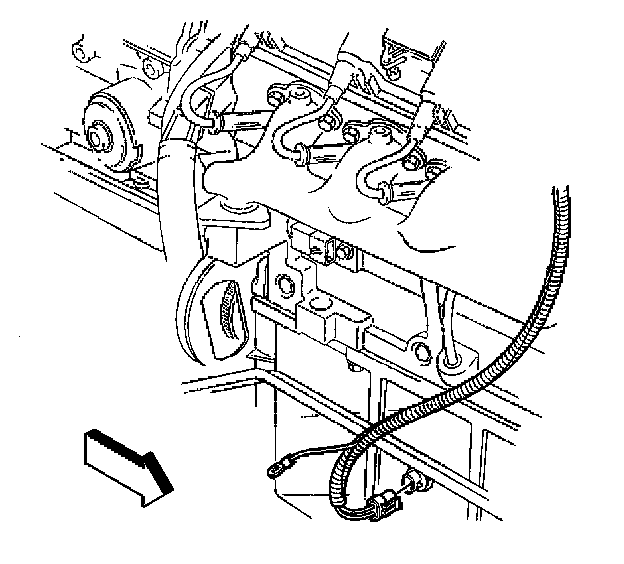

18. If necessary, disconnect the heated oxygen sensor (HO2S) electrial connectors.

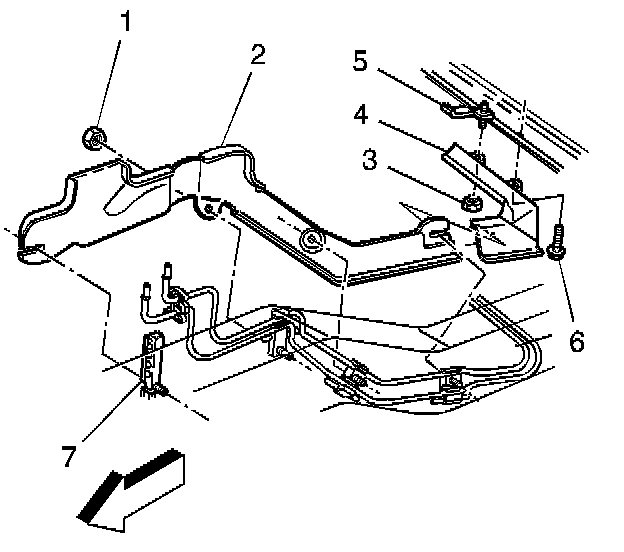

19. Remove the front fuel pipe heat shield nuts (1).
20. Remove the front fuel pipe heat shield (2).
21. Remove the front brake pipes from the retaining clip.

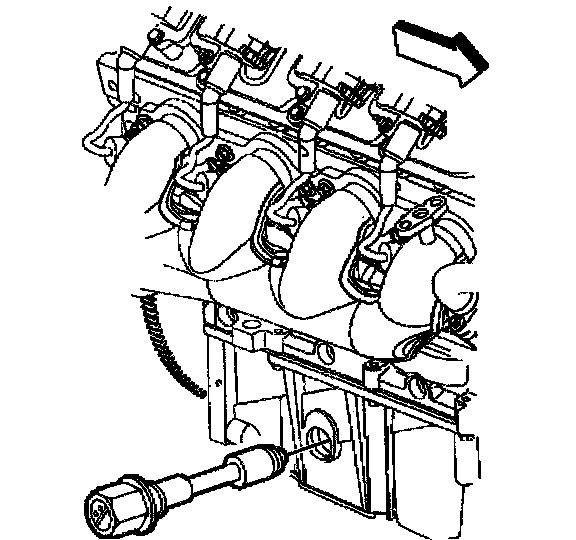

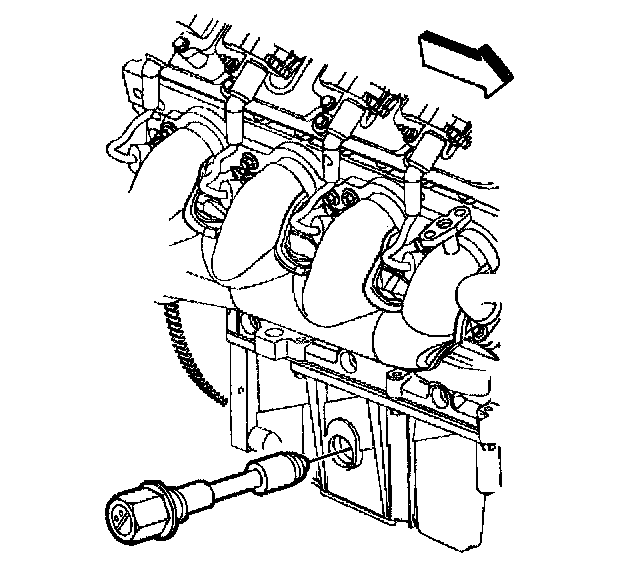

22. Disconnect the oil level sensor connector, if required.
23. Remove the oil level sensor from the oil pan, if required.

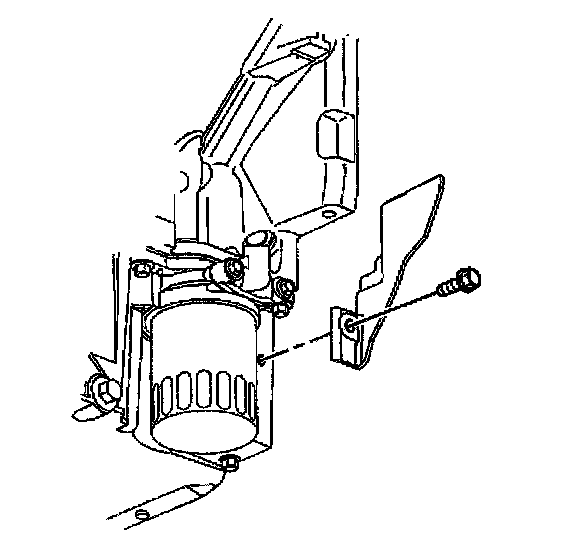

24. Remove the right side closeout and bolt.

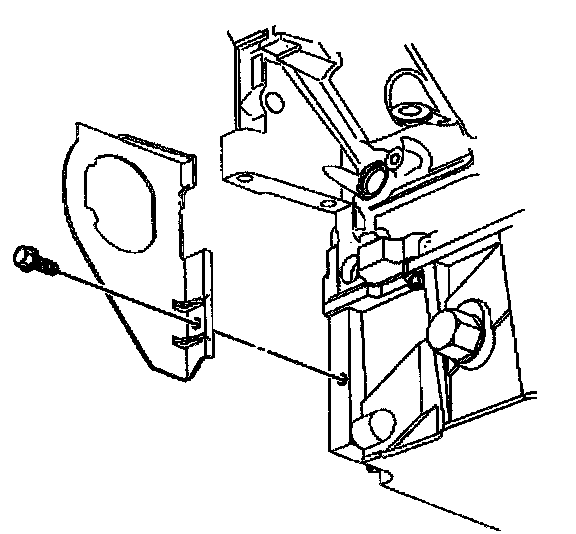

25. Remove the left side closeout and bolt.
26. Support the crossmember with suitable jack.
27. Remove the crossmember bolts.
28. Lower the crossmember.
29. Remove the bottom two transmission bellhousing bolts.

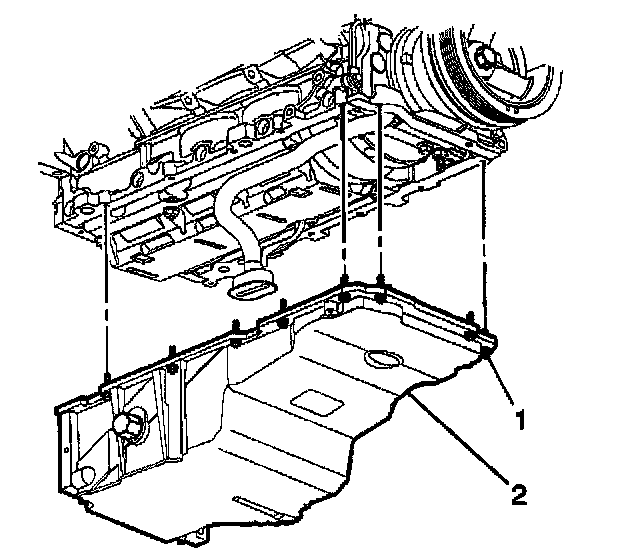

30. Remove the oil pan bolts (1).
Important: Use care not to gouge, score, or damage the oil pan sealing surface.
31. Rotate the oil pan until it can be removed from around the oil pump screen.
Important: DO NOT allow foreign material to enter the oil passages of the oil pan, cap or cover the openings as required.

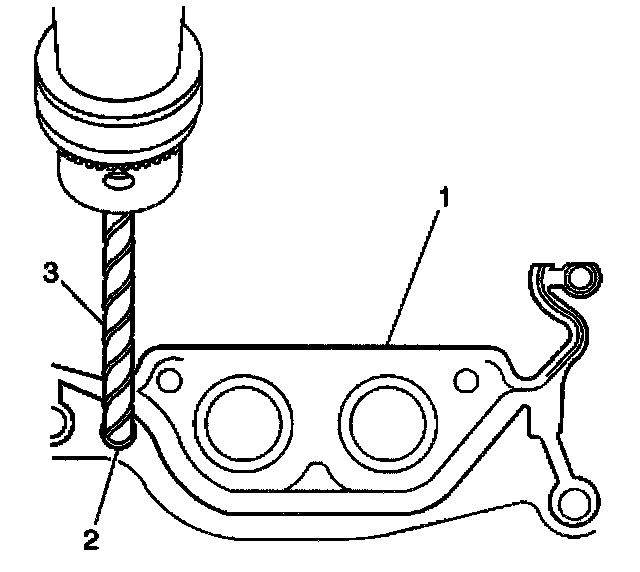

32 Drill out the oil pan gasket rivets (2) and remove the gasket (1) from the oil pan.
33. Discard the old gasket and rivets.
Installation
Important: The alignment of the structural oil pan is critical. The rear bolt hole locations of the oil pan provide mounting points for the transmission bellhousing. To ensure the rigidity of the powertrain and correct transmission alignment, it is important that the rear of the block and the rear of the oil pan must NEVER protrude beyond the engine block and transmission bellhousing plane.

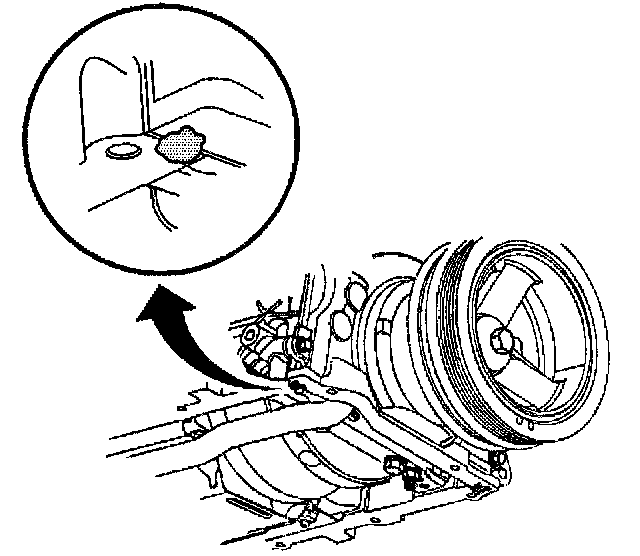

1. Apply a 5 mm (0.2 inch) bead of sealant GM P/N 12378190 or equivalent 20 mm (0.8 inch) long to the engine block.
2. Apply the sealant directly onto the tabs of the front cover gasket that protrudes into the oil pan surface.

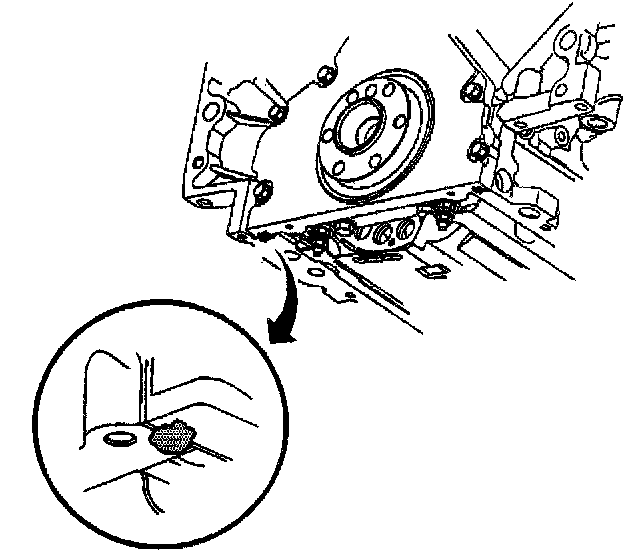

3. Apply a 5 mm (0.2 inch) bead of sealant GM P/N 12378190 or equivalent 20 mm (0.8 inch) long to the engine block.
4. Apply the sealant directly onto the tabs of the rear cover gasket that protrudes into the oil pan surface.
5. Pre-assemble the oil pan gasket to the pan t2).
5.1. Install the gasket onto the pan (2).
5.2. Install the oil pan bolts (1) to the pan through the gasket.

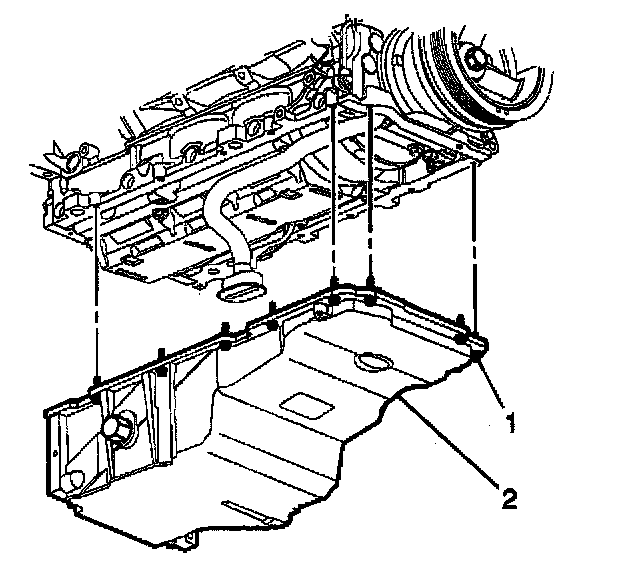

6. Install the oil pan (2), gasket and bolts (1) to the engine block.
7. Snug the oil pan bolts (1) finger tight. Do not overtighten.
8. Install the two lower bellhousing bolts to position the oil pan correctly.
Notice: Refer to Fastener Notice in Service Precautions.
9. Snug the lower bellhousing bolt finger tight. Do not overtighten.
9.1. Tighten the oil pan-to-block and oil pan-to-oil pan front cover bolts to 25 Nm (18 ft. lbs.).
9.2. Tighten the oil pan-to-rear cover bolts to 12 Nm (106 inch lbs.).
9.3. Tighten the bellhousing bolts to 50 Nm (37 ft. lbs.).

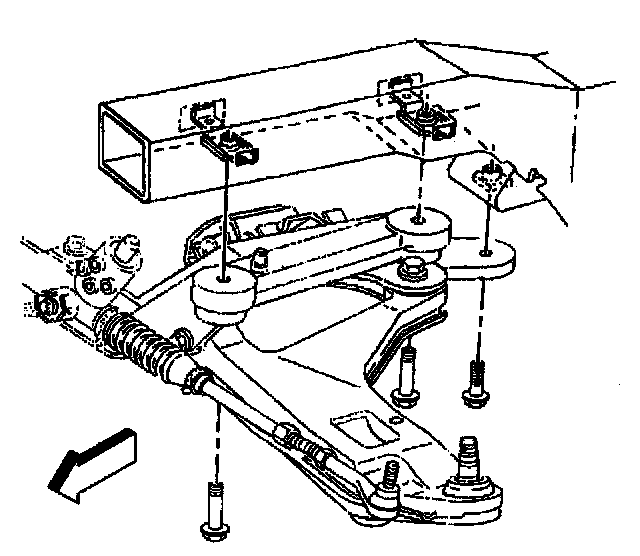

10. Raise the crossmember.
11. Install the crossmember bolts.
Tighten the cradle bolts.
- Tighten the upper four cradle bolts to 125 Nm (92 ft. lbs.).
- Tighten the lower two cradle bolts to 145 Nm (107 ft. lbs.).
12. Remove the crossmember support
13. Install the left side closeout and bolt.
Tighten
Tighten the left side closeout bolt to 12 Nm (106 inch lbs.).
14. Install the right side closeout and bolt.
Tighten
Tighten the right closeout bolt to 12 Nm (106 inch lbs.).
15. Install the oil level sensor to the oil pan, if removed.
Tighten
Tighten the oil level sensor to 35 Nm (26 ft. lbs.).
16. Connect the oil level sensor electrical connector.
17. Install the front brake pipes to the retaining clip.
18. Install the front fuel pipe heat shield (2).
19. Install the front fuel pipe heat shield nuts (1).
Tighten
Tighten the front fuel pipe heat shield nuts to 5 Nm (44 lb. in.).

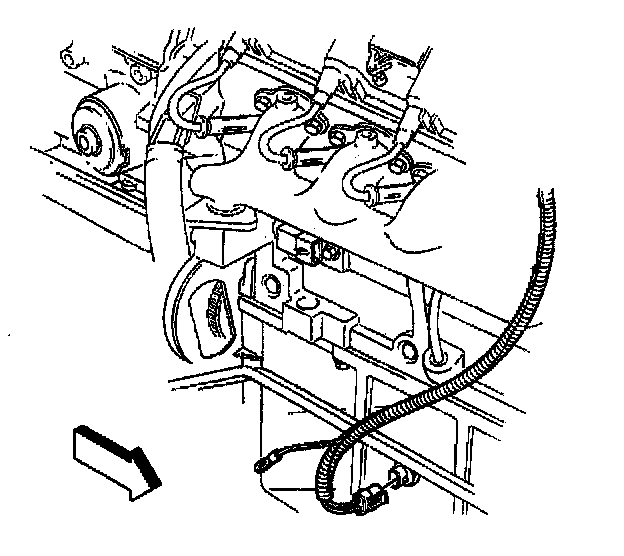

20. If necessary, connect the HO2S electrical connectors.
21. Connect the left and right wheel speed sensor electrical connectors.
22. Position the gear to the crossmember.
23. Install the power steering gear bolts (1) and nuts (4).
Tighten
Tighten the power steering gear bolts to 85 Nm (63 lb. ft.)
24. Position the steering shaft to the gear.
25. Install the intermediate steering shaft and bolt.
Tighten
Tighten the intermediate shaft bolt to 47 Nm (35 lb. ft.).
26. Install the right and left side shock absorber lower mounting bolts.
Tighten the shock absorbers bolts to 65 Nm (48 ft. lbs.).
27. Install the right and left sleeves (50 and end links (3).
28. Install the right and left end link nuts (7).
Tighten
Tighten the end link nuts to 23 Nm (17 lb. ft.).
29. Install the left side engine mount cradle bolts.
Tighten the engine mount to cradle bolts to 58 Nm (43 ft. lbs.).
30. Install the right side engine mount cradle bolts.
- Tighten the right side engine mount cradle bolts to 58 Nm (43 ft. lbs.).
31. Install the oil filter.
Tighten
Tighten the oil filter to 30 Nm (22 lb. ft.).
32. Install the oil drain plug
Tighten
Tighten the oil drain plug to 25 Nm (18 lb. ft.).
33. Install the starter motor.
34. Lower the vehicle.
35. Remove the caps or plugs from the brake pipes and BPMV.
36. Connect the front brake pipes to the BPMV.
Tighten
Tighten the brake pipe fittings to 15 Nm (11 lb. ft.).
37. Remove the engine support fixture.
38. Refill the engine oil.
39. Bleed the brakes.
