Drive Belt Replacement - Accessory

Removal Procedure





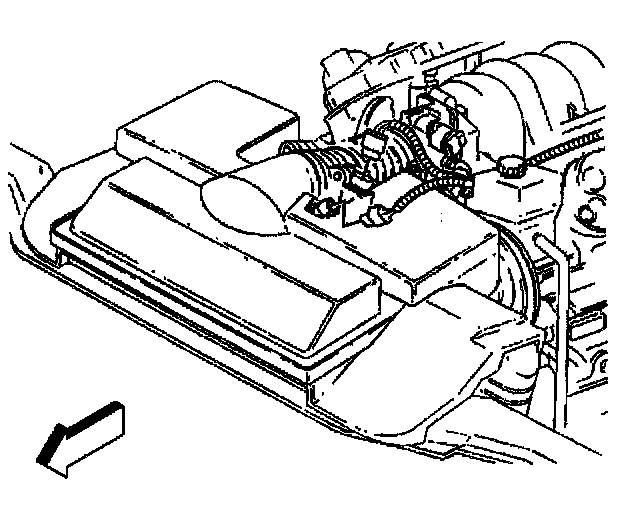

1. Disconnect the intake air temperature (IAT) sensor electrical connector.
2. Disconnect the mass airflow (MAF) sensor electrical connector.

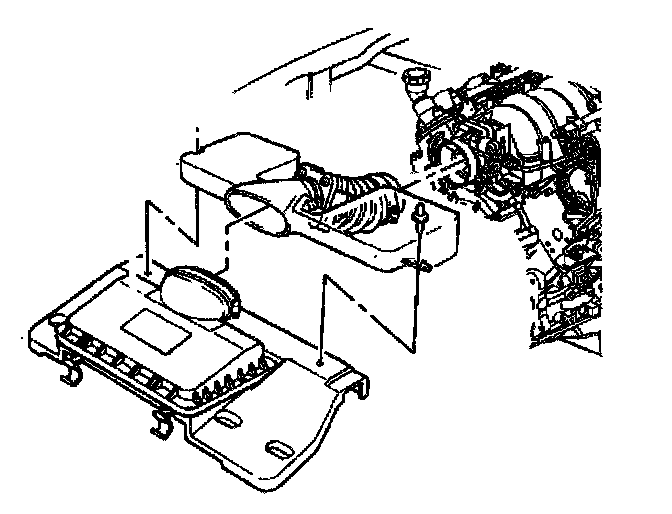

3. Remove the air intake duct from the throttle body and the air cleaner box.





4. Position a hex-head socket on the belt tensioner bolt.

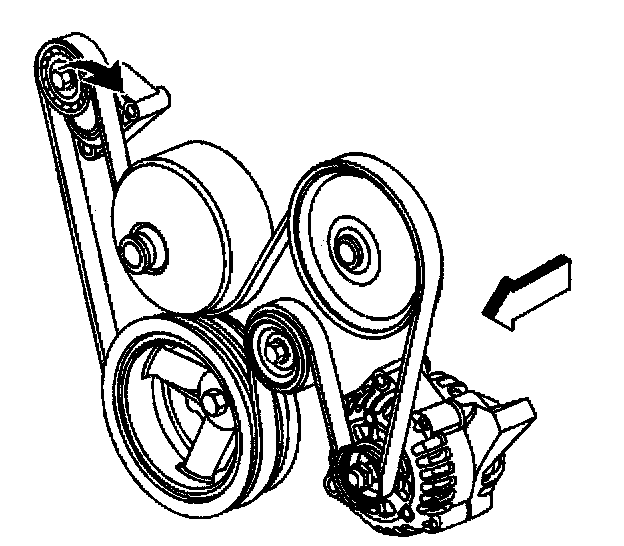

5. Rotate the drive belt tensioner clockwise to relieve the tension on the drive belt.
6. Remove the drive belt from the tensioner and pulleys.
7. Clean and inspect the belt surfaces of all the pulleys.

Installation Procedure





1. Route the drive belt around the pulleys.
2. Position a hex-head socket on the belt tensioner bolt.
3. Rotate the drive belt tensioner clockwise to relieve the tension.
4. Install the drive belt onto the drive belt tensioner.
5. Inspect the drive belt to ensure that the belt is properly aligned into the grooves of the pulleys.





6. Install the air intake duct to the throttle body and the air cleaner box.





7. Connect the MAF sensor electrical connector.
8. Connect the IAT sensor electrical connector.
