Enabling

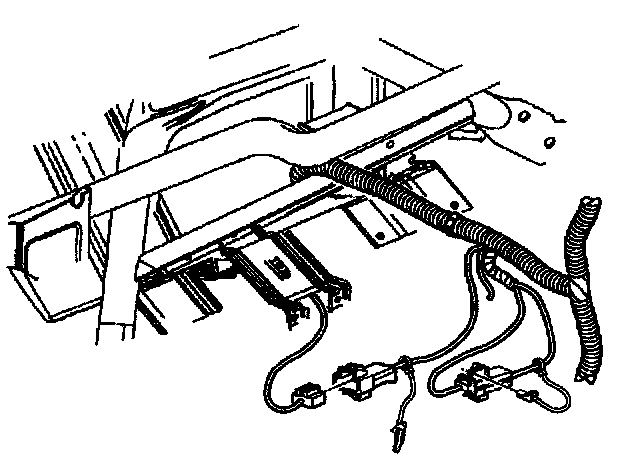

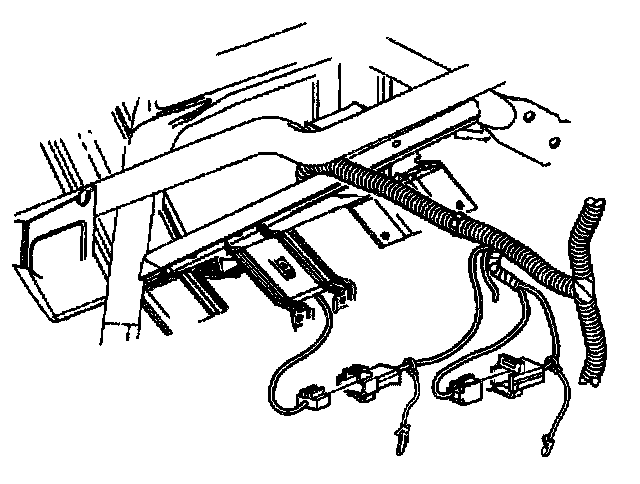

1. Connect the passenger yellow 2-way connector located near the base of the steering column.




2. Install the Connector Position Assurance (CPA) to the passenger yellow 2-way connector.

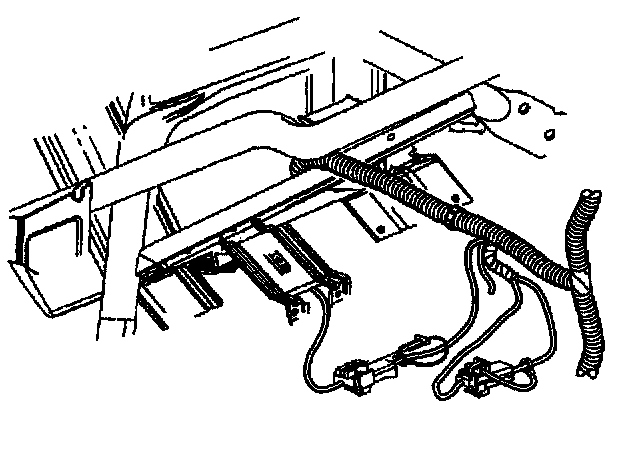

3. Connect the driver yellow 2-way connector located at the base of the steering column.




4. Install the connector position assurance (CPA) to the driver yellow 2-way connector.
5. Install the IP insulator panel.

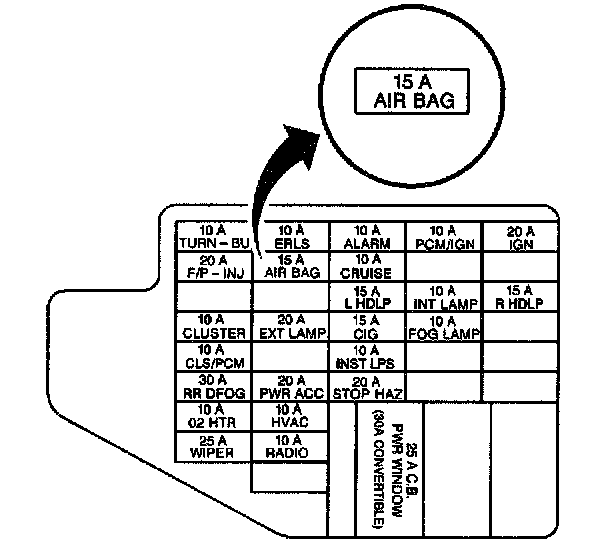

6. Install the SIR Fuse in the fuse block.
7. Staying well away from both air bags, turn ON the ignition.
7.1. The AIR BAG warning lamp will flash seven times.
7.2. The AIR BAG warning lamp will then turn OFF.
8. Perform A Diagnostic System Check - SIR if the AIR BAG warning lamp does not operate as described.
