Home >> Chevrolet >> 2000 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> LH Headlamp Opening Door Assembly

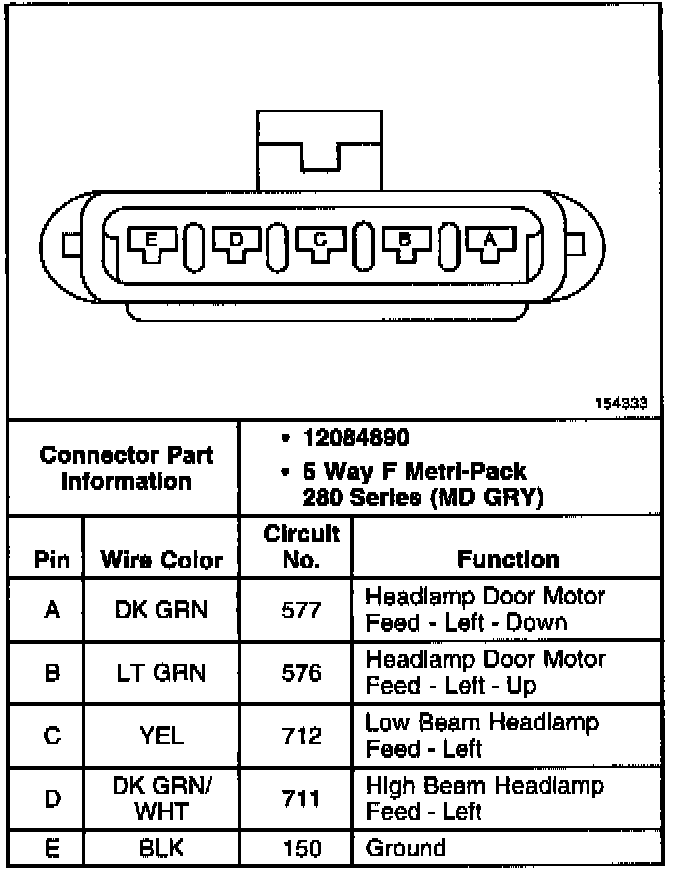

LH Headlamp Opening Door Assembly

LH Headlamp Opening Door Assembly:
