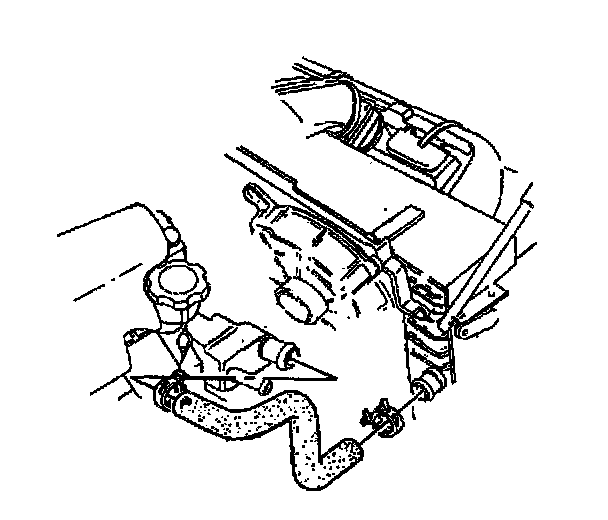

Radiator Hose Replacement - Outlet

Removal Procedure

- Tools Required
- J 38185 Spring Hose Clamp Pliers





1. Drain the cooling System. Refer to Draining and Filling Cooling System.
2. Remove the radiator outlet hose clamps.
3. Remove the radiator outlet hose.


Installation Procedure





1. Install the radiator outlet hose.
2. Install the radiator outlet hose clamps.
3. Fill the cooling system. Refer to Draining and Filling Cooling System.
