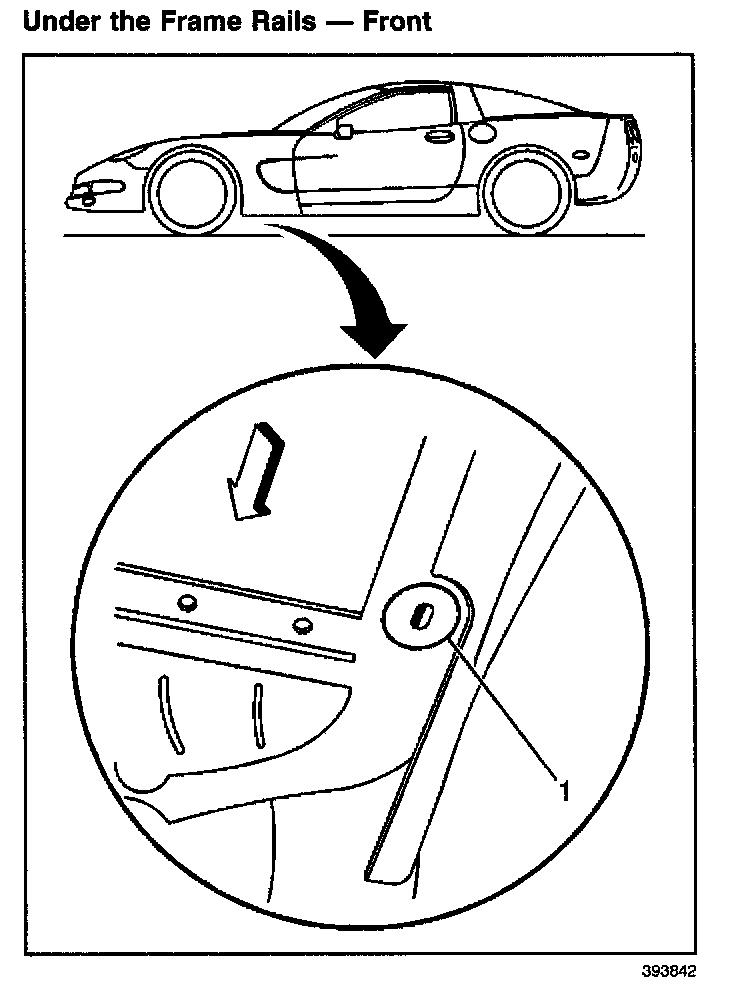

Under the Frame Rails - Front

IMPORTANT: Use only service jacks utilizing 64 mm (2 1/2 inch) or smaller diameter lifting pads, to reduce the possibility of contact with undesired areas of the vehicle:

Under The Frame Rails - Front:

The service jack lift pad must not contact the front fenders, or the floor pan.

Position the service jack lift pad as follows:

Under the frame rail shipping slot reinforcements (1).
