Inflatable Restraint Steering Wheel Module Replacement

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to Disabling the SIR System.

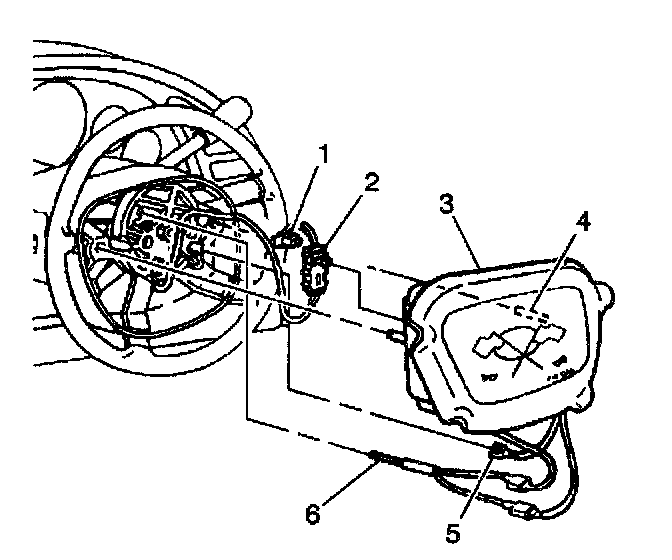

2. Remove the screws (4) retaining the inflatable restraint steering wheel module (3) to the steering wheel.
3. Remove the inflatable restraint steering wheel module (3) from the steering wheel.
4. Disconnect the connector position assurance (1) from the inflatable restraint steering wheel module coil electrical connector (2).
5. Disconnect the electrical connector (2) from the back of the inflatable restraint steering wheel module (3).
6. Disconnect the horn wiring harness (6) from the steering column.
7. Disconnect the ground wire (5) from the steering column.
8. Remove the inflatable restraint steering wheel module (3) from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the inflatable restraint steering wheel module retaining screws (2) into module.

Tighten
Tighten the retaining screws to 6 N.m (54 lb in).




2. Connect the ground wire (5) to the steering column.
3. Connect the horn wiring harness (6) to the steering column.
4. Connect the inflatable restraint steering wheel module coil electrical connector (2) to the back of the inflatable restraint steering wheel module (3).
5. Install the connector position assurance (1) to the electrical connector (2).
6. Install the inflatable restraint steering wheel module (3) onto the steering wheel by pushing on both the right and left sides of the module until the retaining screws snap into place.
7. Enable the SIR system. Refer to Enabling the SIR System.
