Child Seat Tether Attachment: Service and Repair

REMOVAL PROCEDURE
1. Remove the child restraint tether strap from the anchor plate, if the child restraint is installed.
2. Reposition the rear compartment floor carpet to expose the anchor plate bolt.
3. Remove the bolt and the anchor plate.

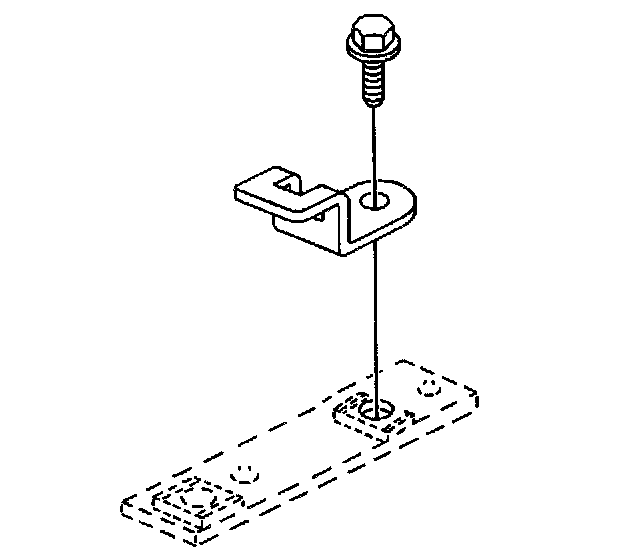

INSTALLATION PROCEDURE
1. Insert the anchor plate through the slit in the carpet.
2. Align the anchor plate with the raised end forward.
3. Start the bolt through the anchor plate into the hole in the floor reinforcement.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Insure the anchor plate does not turn while tightening the bolt.

4. Tighten the child restraint tether anchor plate bolt.

Tighten
Tighten the child restraint tether anchor plate bolt to 27 N.m (20 lb ft).

5. Reposition the carpet over the bolt.
6. Install the child restraint tether, if the child restraint is installed.
