Installation Procedure

Installation Procedure

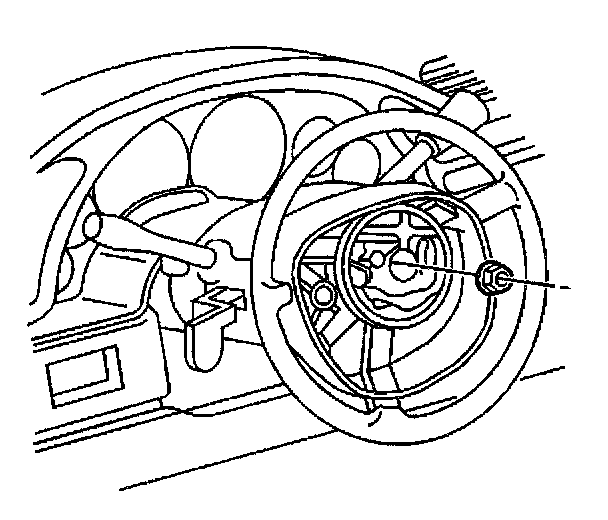

1. Install the steering wheel to the steering column, observing the alignment marks (splines).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install a new steering wheel set nut.
- Tighten the new steering wheel set nut to 41 Nm (30 ft. lbs.).
3. Remove J 42640 from the steering column.
4. Connect the horn electrical connector.
5. Install the steering wheel inflator module.
6. Perform a SIR Diagnostic System Check.
