MAF, EVAP Purge, Air Injection

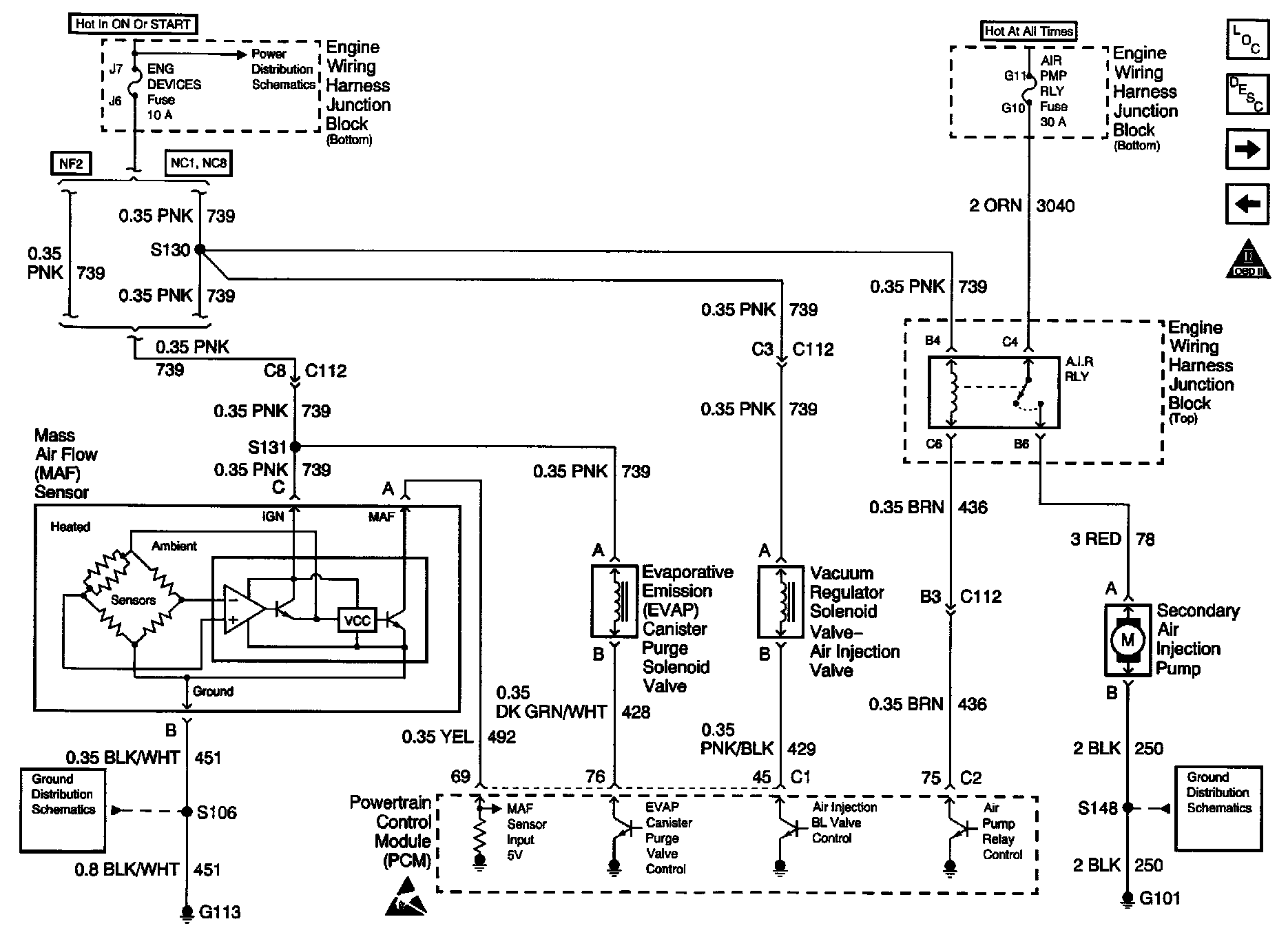

Engine Controls Schematics: Engine Data Sensors - MAF, EVAP Purge, Air Injection:
