Radiator Hose Replacement - Inlet

Removal Procedure

- Tools Required
- J 38185 Hose Clamp Pliers





1. Partially drain the cooling system. Refer to Draining and Filling Cooling System.
2. Remove the left diagonal brace. Refer to Brace Replacement - Front Fender Upper Diagonal (impala) or Brace Replacement - Front Fender Upper Diagonal (Monte Carlo) in Body and Frame.

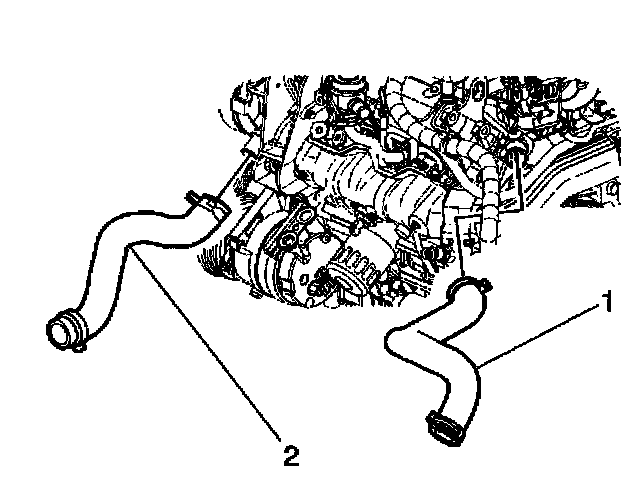

3. Use the J 38185 in order to reposition the hose clamp at the thermostat housing. Disconnect the inlet hose (1) from the thermostat housing





4. Use the J 38185 in order to reposition the hose clamp at the radiator.
5. Disconnect the inlet hose from the radiator. Remove the inlet hose.

Installation Procedure

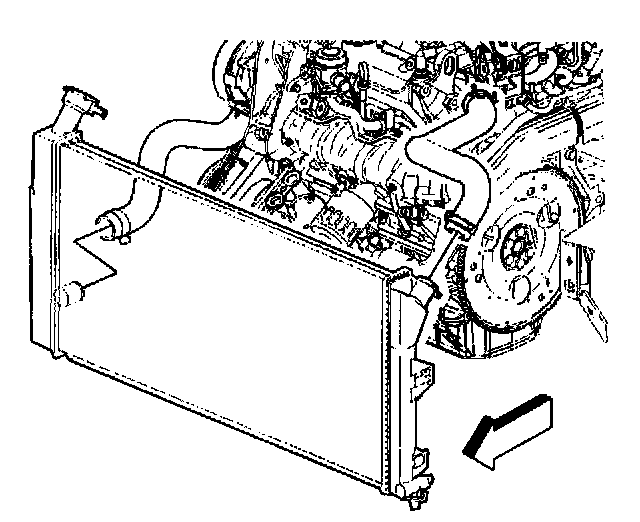

1. Align the marks on the hose. Install the inlet hose to the radiator.
2. Use the J 38185 in order to reposition and install the hose clamp at the radiator.





3. Connect the inlet hose (1) to the thermostat housing.
4. Use the J 38185 in order to reposition and install the inlet hose at the thermostat housing.
5. Install the left diagonal brace. Refer to Brace Replacement - Front Fender Upper Diagonal (Impala) or Brace Replacement - Front Fender Upper Diagonal (Monte Carlo) in Body and Frame.
6. Fill the cooling system. Refer to Draining and Filling Cooling System.
7. Inspect for leaks.
