Passenger Assist Handle: Service and Repair

Assist Handle Replacement (Impala Front)

Removal Procedure




1. Remove the plastic cover with a small, flat-bladed tool in order to expose the screws.
2. Pull down on the assist strap to expose the screws.

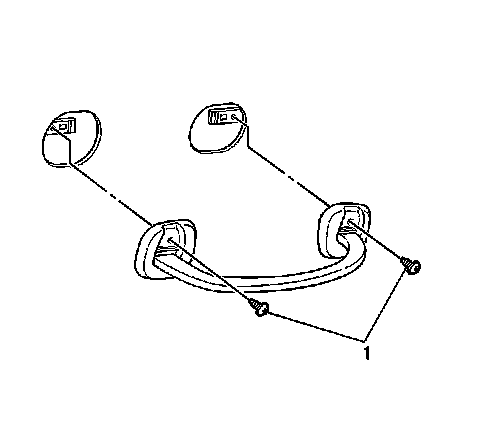

3. Remove the assist strap screws (1).
4. Remove the assist strap from the vehicle.

Installation Procedure




1. Install the assist strap to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the assist strap screws (1).

Tighten the assist strap screws to 2 Nm (18 lb in).

3. Install the plastic cover pressing into place until fully seated.
