Locations
>>
Harness Locations
>>
Center Console (2 Door)
Center Console (2 Door)

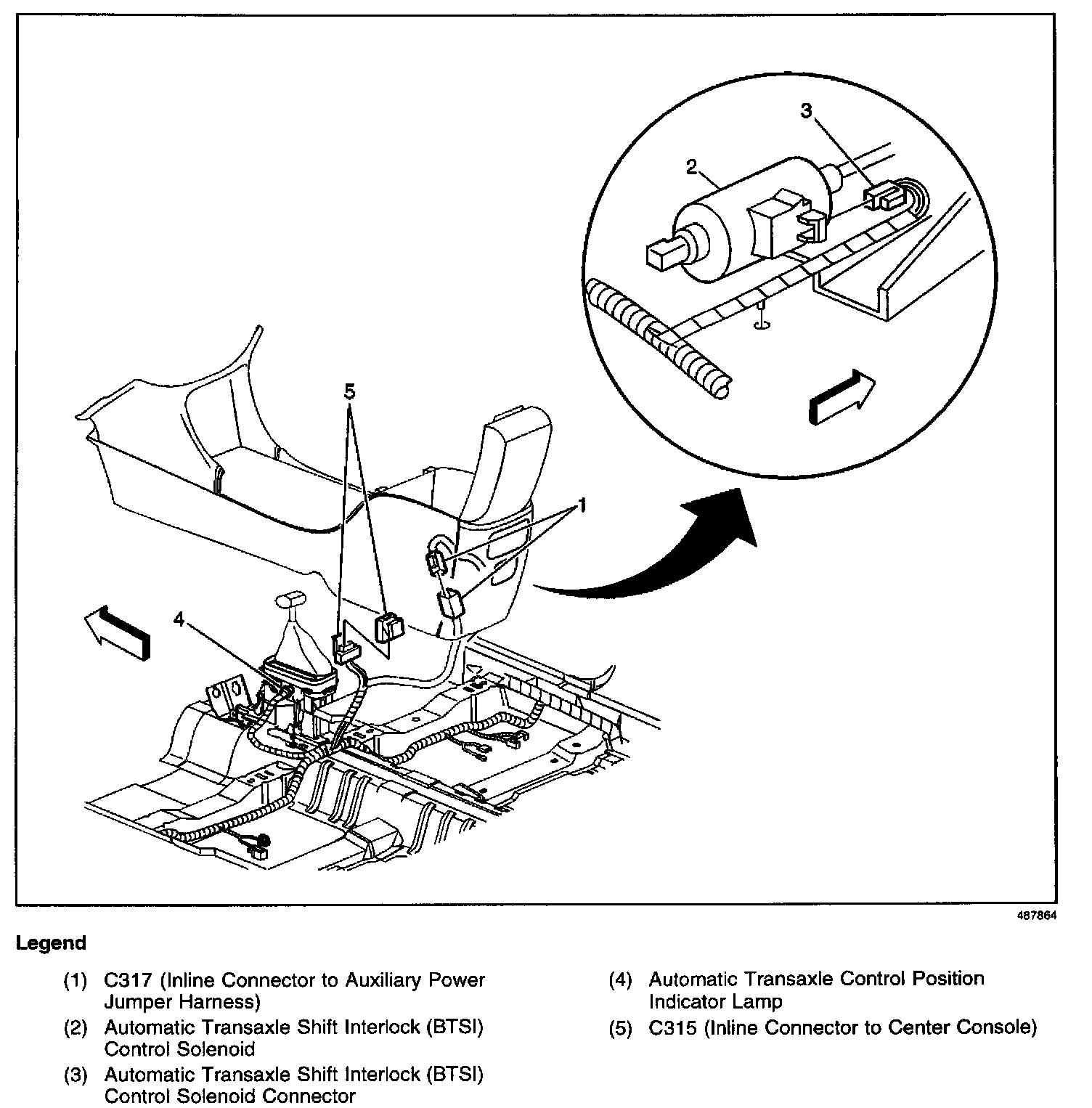

Harness Routing Views (Center Console (2 Door)):
