Seat Belt: Service and Repair

SEAT BELT REPLACEMENT - CENTER REAR

REMOVAL PROCEDURE
1. Remove the rear seat cushion.

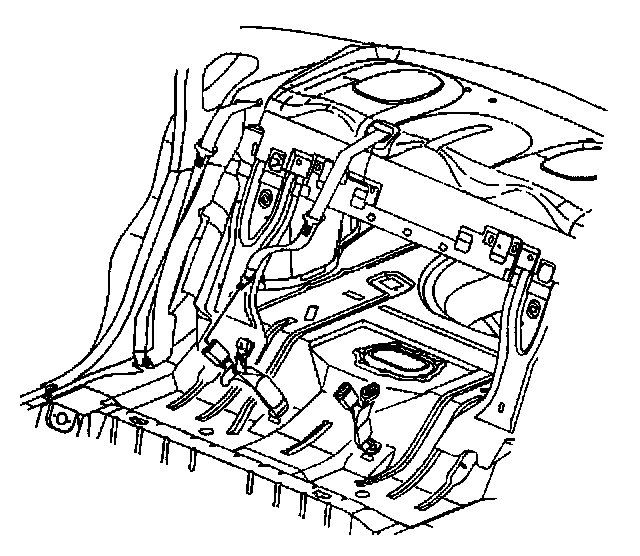

2. Remove the nuts from the center rear seat belts.




3. Remove the center rear seat belts from the vehicle.

INSTALLATION PROCEDURE

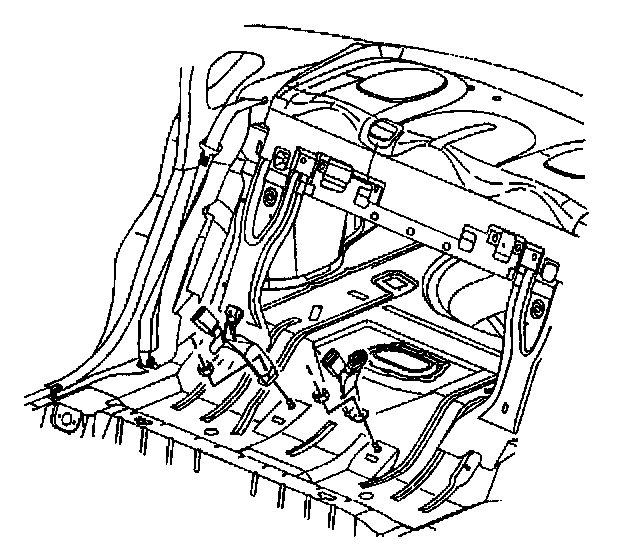

1. Position the center rear seat belts to the anchor studs.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the nuts to the rear seat center belts.

Tighten
Tighten the nuts to 42 N.m (31 lb ft).

3. Install the rear seat cushion.
