Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
LH IP Accessory Wiring Junction Block, C1
LH IP Accessory Wiring Junction Block, C1

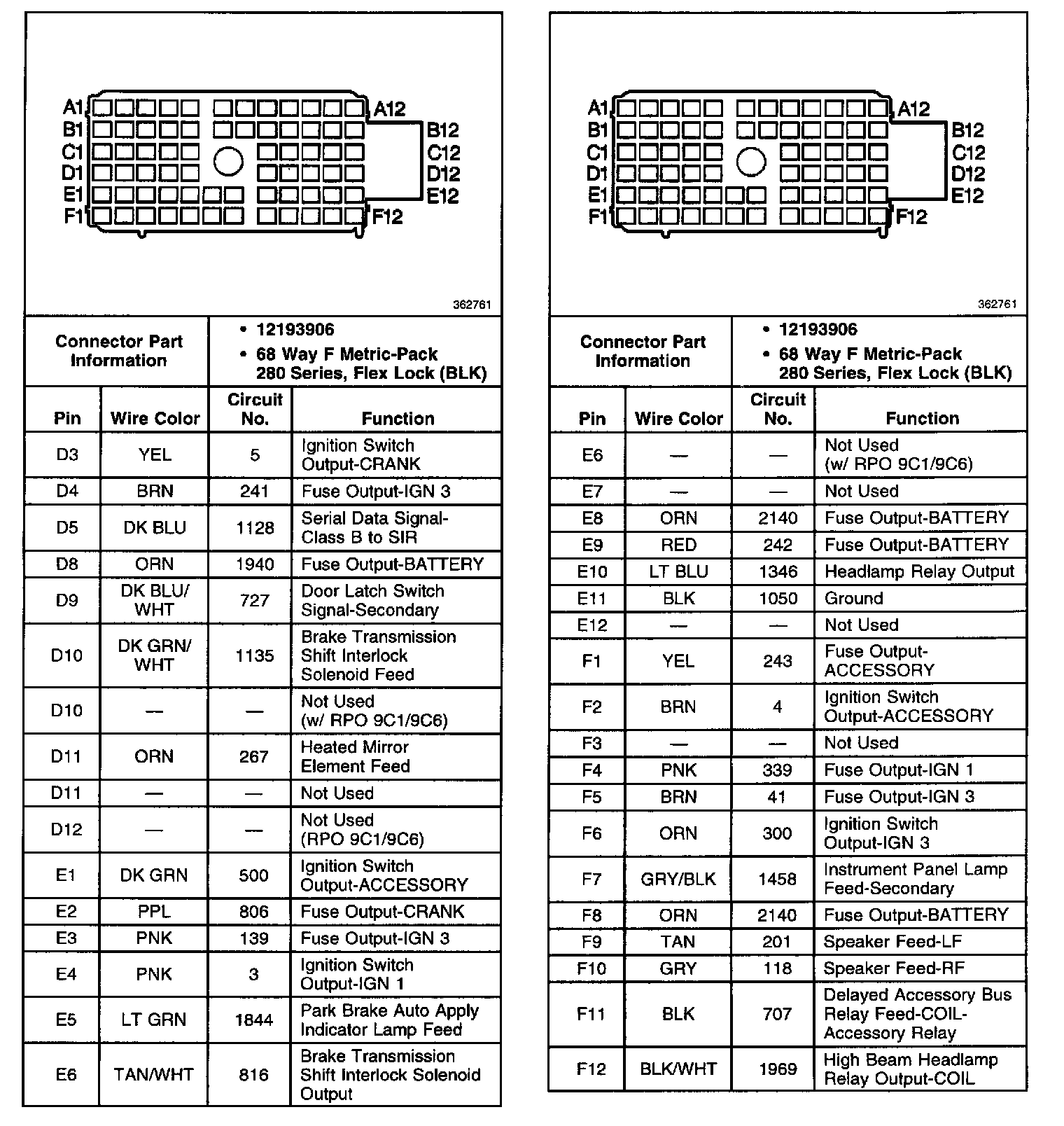

LH IP Accessory Wiring Junction Block, C1 (Part 1 Of 2):
LH IP Accessory Wiring Junction Block, C1 (Part 2 Of 2):
