RH IP Accessory Wiring Junction Block, C1

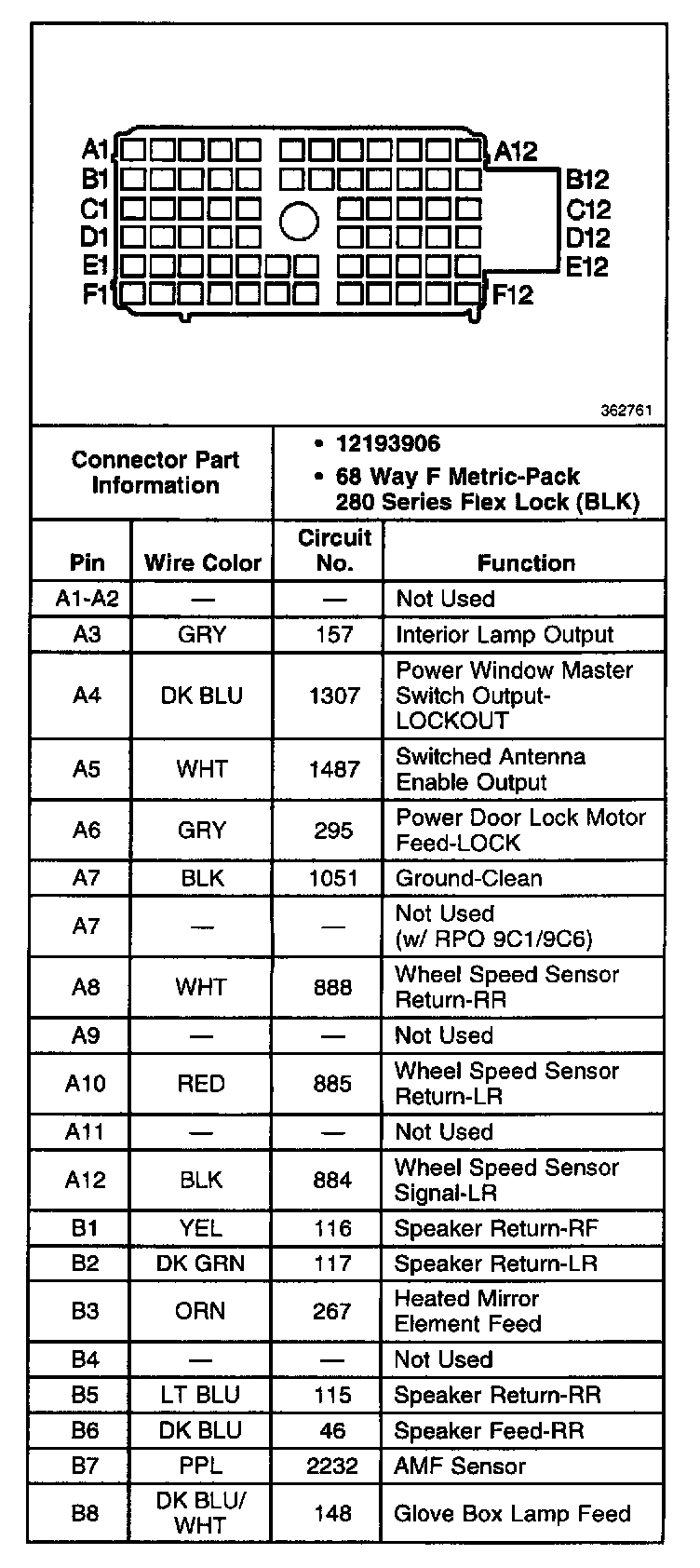

RH IP Accessory Wiring Junction Block, C1 (Part 1 Of 3):

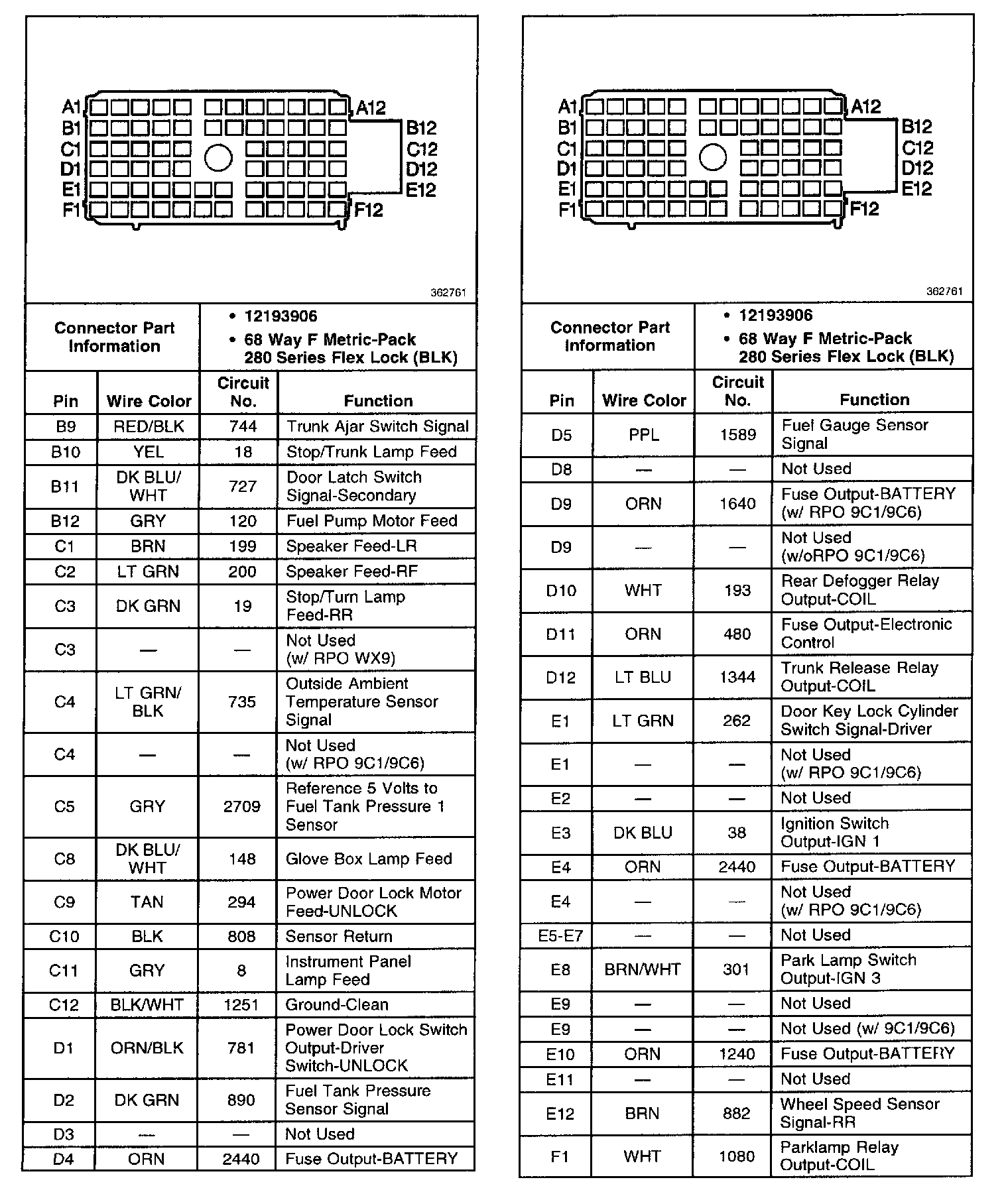

RH IP Accessory Wiring Junction Block, C1 (Part 2 Of 3):

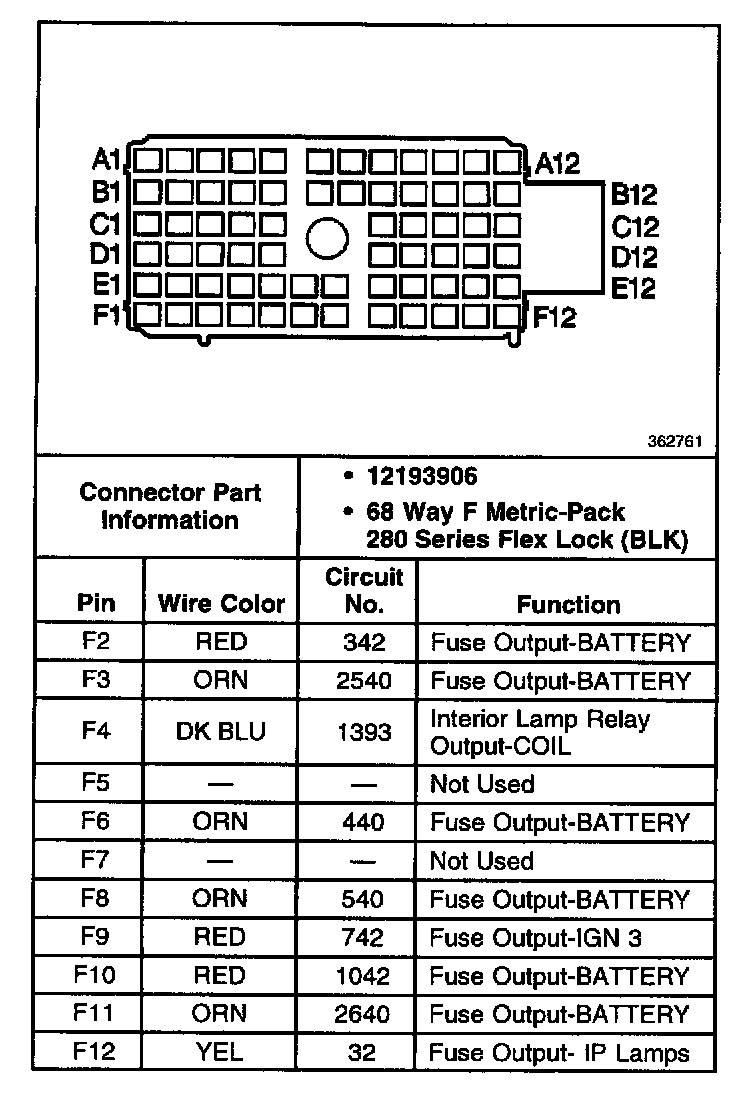

RH IP Accessory Wiring Junction Block, C1 (Part 3 Of 3):
