Linear Shift - Assemble

Assembly Procedure

Important: Lubricate all moving parts of the linear shift assembly with synthetic grease.

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the gearshift lever assembly support bracket and secure by using 3 flat head 6-lobed socket tap screws.
Tighten the screws to 10 Nm (89 inch lbs.).





2. Insert the cam bushing (2) into the cable shift cam assembly.
3. Install the cable shift cam assembly (1).
4. Install the hexagon flange head bolt.
Tighten the screw to 18 Nm (14 ft. lbs.).





5. Install the park lock cable assembly and secure by using 2 oval head 6-lobed socket tap screws.
Tighten the screws to 6.5 Nm (58 inch lbs.).

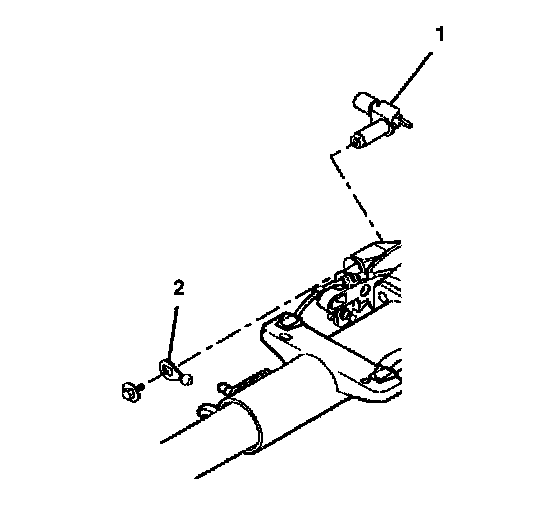

6. Install the shift lever clevis (1).
7. Install the ball actuator assembly (2).
8. Install the hexagon flanged head bolt.
Tighten the bolt to 18 Nm (14 ft. lbs.).
