Breather

Removal Procedure





1. Remove the throttle body air inlet duct. Refer to Powertrain Management.

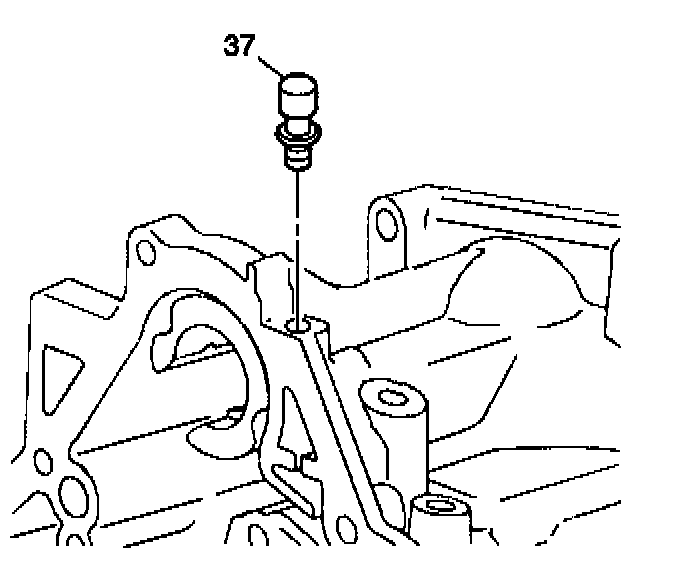

2. Remove the transaxle vent (press fit) (37) from the automatic transmission.

Installation Procedure

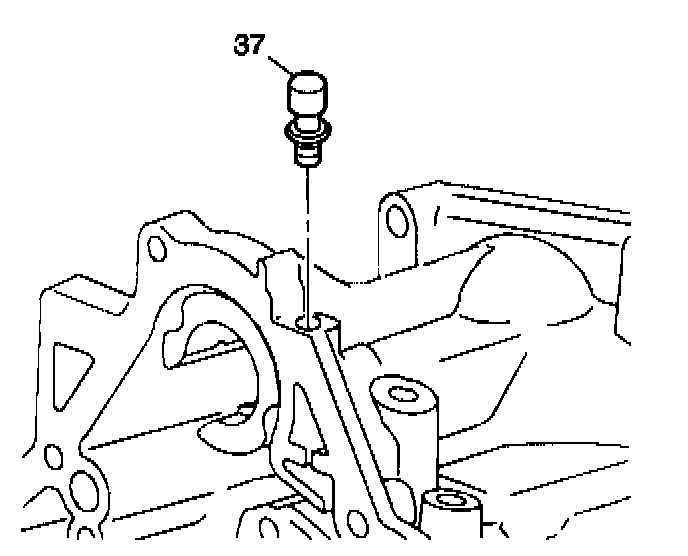

1. Install the transaxle vent (press fit) (37) to the automatic transmission.
2. Install the throttle body air inlet duct. Refer to Powertrain Management.
