Hazard Lamp/Turn Signal Flasher
Hazard Lamp/Turn Signal Flasher

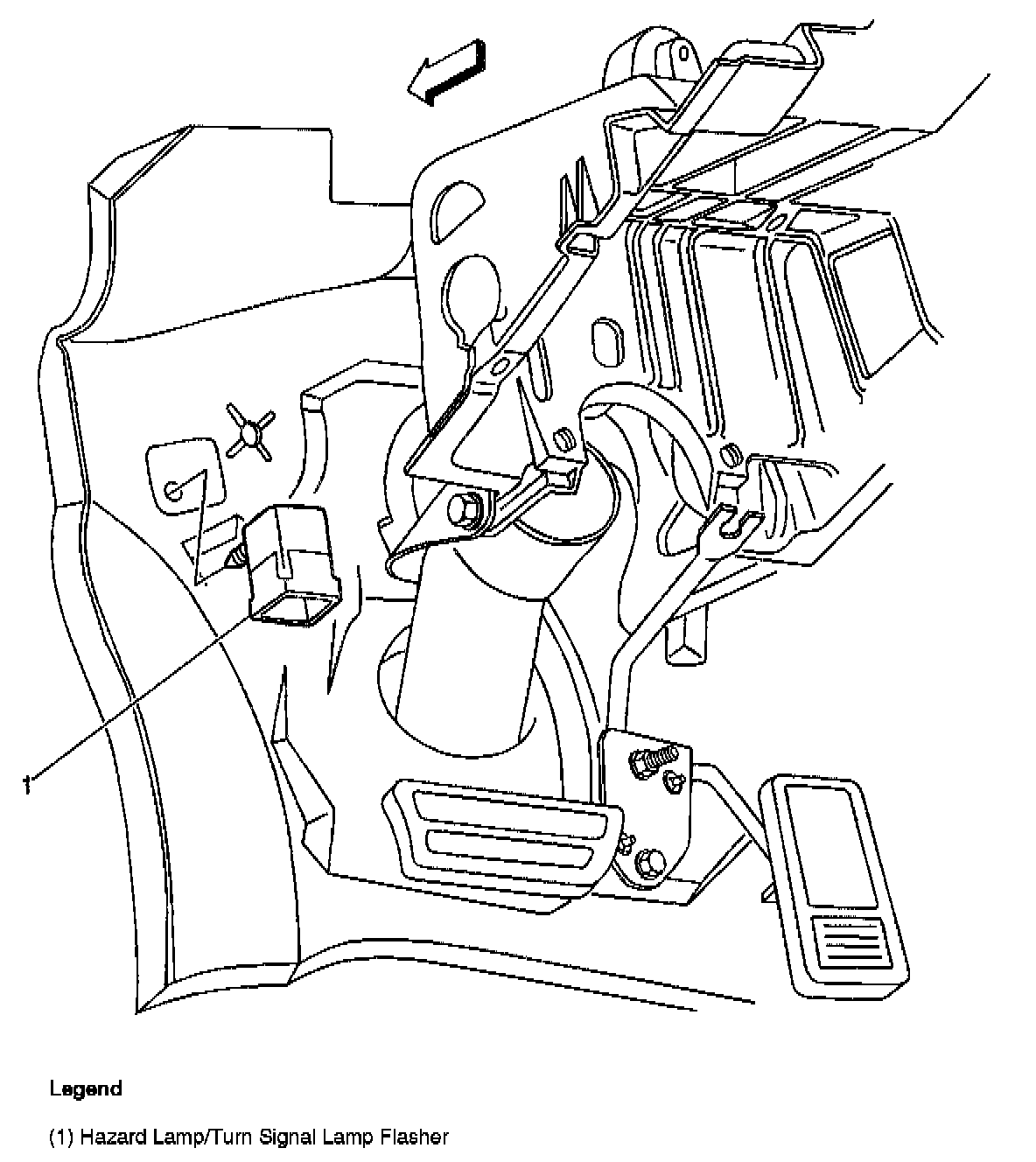

Locations View:
Behind the left side of the instrument panel, mounted in the bulkhead
