Home >> Chevrolet >> 2000 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Of Engine, Left Side Of Engine Compartment

Rear Of Engine, Left Side Of Engine Compartment

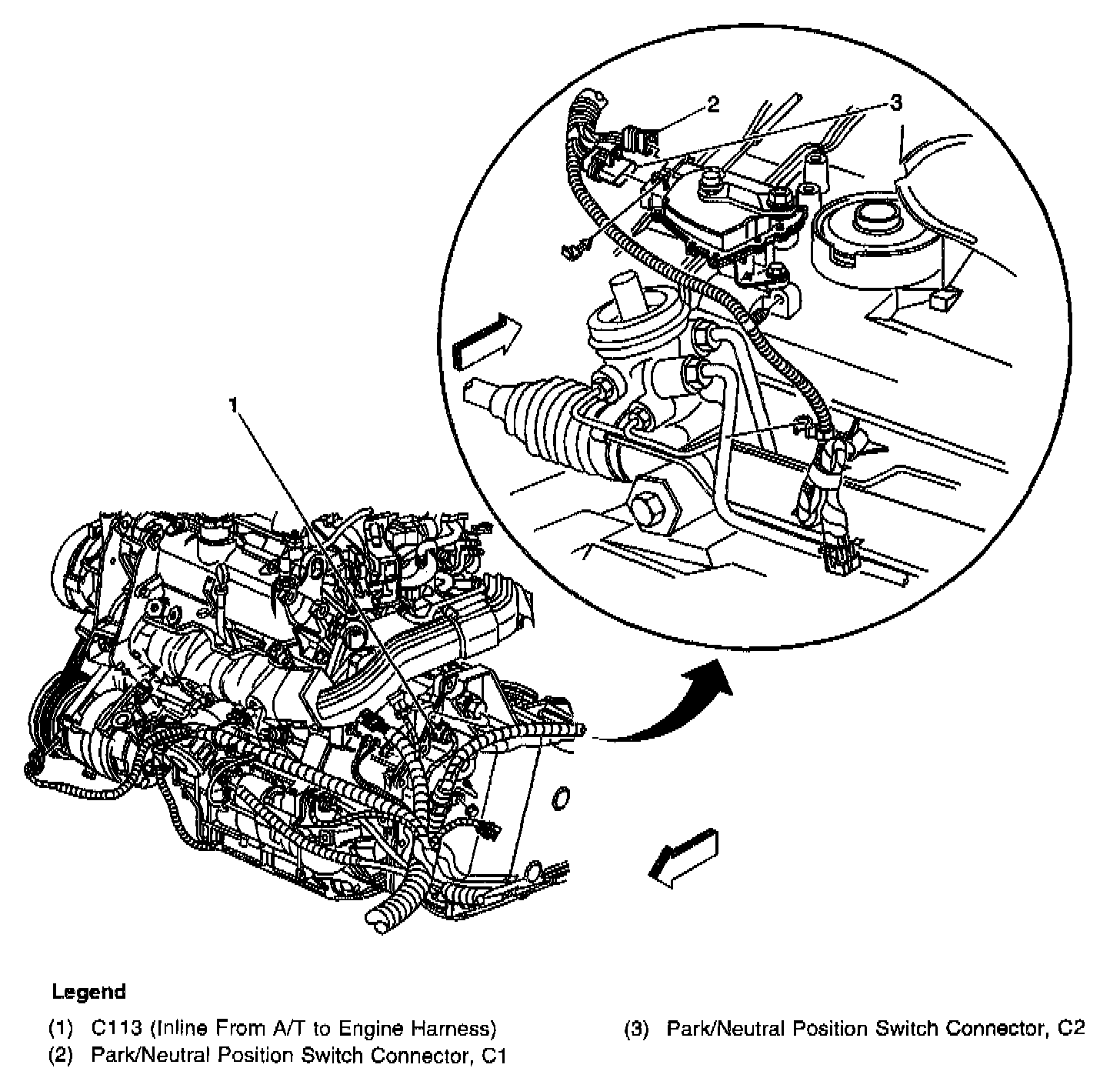

Harness Routing Views (Rear Of Engine, Left Side Of Engine Compartment):
