Exhaust System Replacement

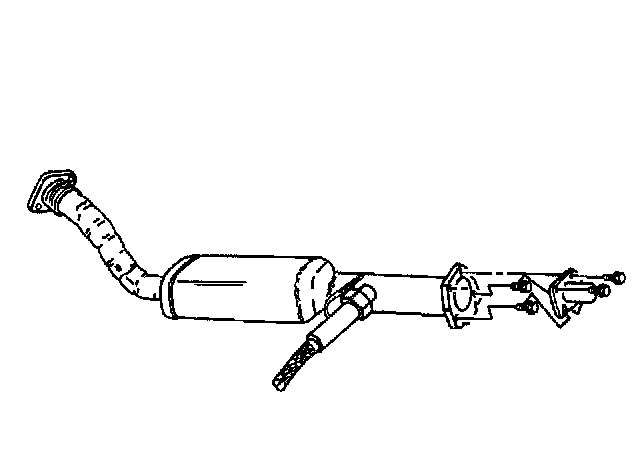

Removal Procedure1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Disconnect the heated oxygen sensor (H02S) wiring harness connector and retainers. Refer to Heated Oxygen Sensor (H02S) Replacement (H02S2) in Powertrain Management.
Notice: Refer to Catalytic Converter Movement Notice in Service Precautions.

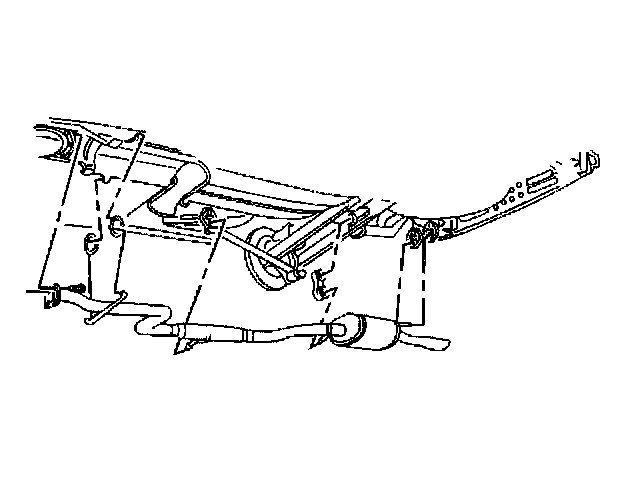

3. Suitably support the exhaust system.
4. Disconnect the exhaust system hangers from the exhaust system.
5. Remove the catalytic converter bolts from the three-way catalytic converter pipe flange.
6. Remove the exhaust system.

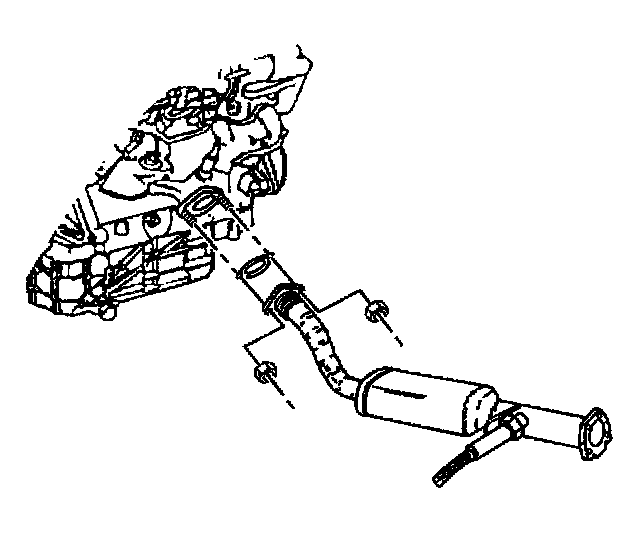

7. Remove the exhaust manifold pipe stud nuts from the exhaust manifold pipe studs.
8. Remove the three-way catalytic converter.
9. Remove the exhaust manifold pipe gasket.

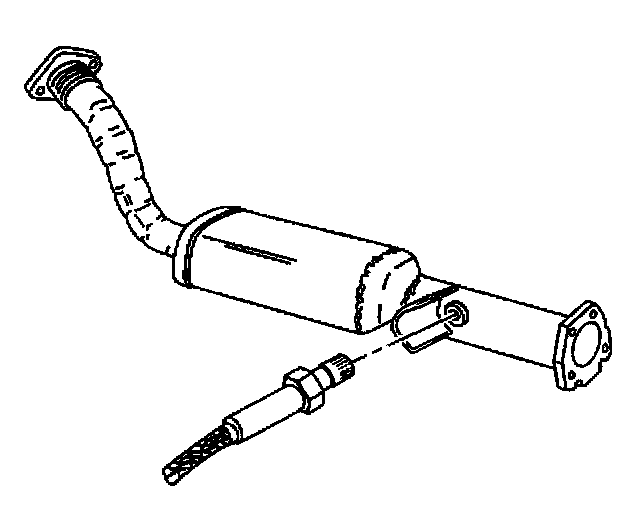

10. Remove the heated oxygen sensor (HO2S). Refer to Heated Oxygen Sensor (H02S) Replacement (H02S2) in Powertrain Management.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.

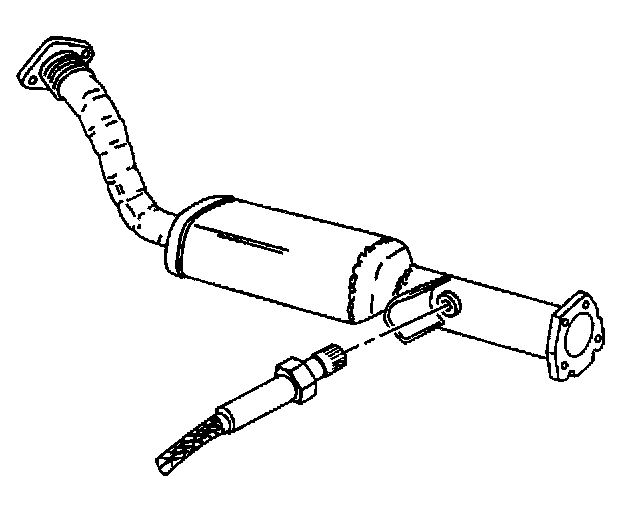

1. Install the heated oxygen sensor (HO2S). Refer to Heated Oxygen Sensor (H02S) Replacement (H02S2) in Powertrain Management.

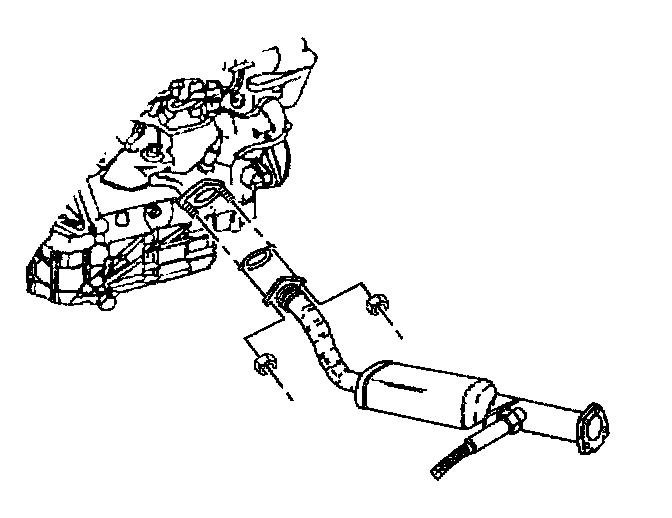

2. Install the exhaust manifold pipe gasket.
3. Install the three-way catalytic converter.
4. Install the exhaust manifold pipe stud nuts to the exhaust manifold pipe studs.
Tighten the exhaust manifold pipe stud nuts to 32 Nm (24 ft. lbs.).
Notice: Refer to Catalytic Converter Movement Notice in Service Precautions.

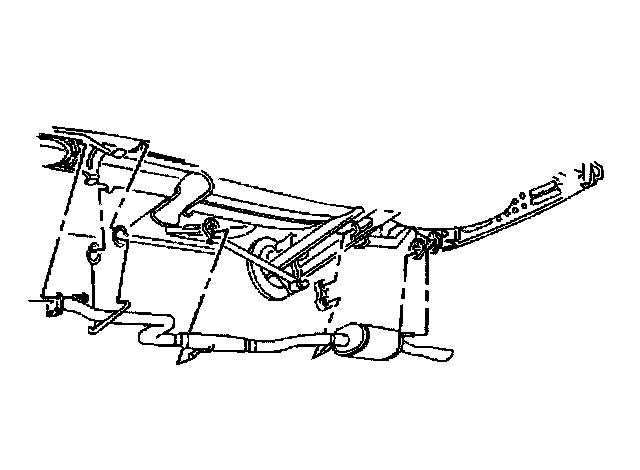

5. Install the exhaust system.
6. Connect the exhaust system hangers to the exhaust system.
7. Install the three-way catalytic converter bolts through the three-way catalytic converter pipe flange.
Tighten the three-way catalytic converter bolts to 45 Nm (33 ft. lbs.).
8. Remove the support from the exhaust system.

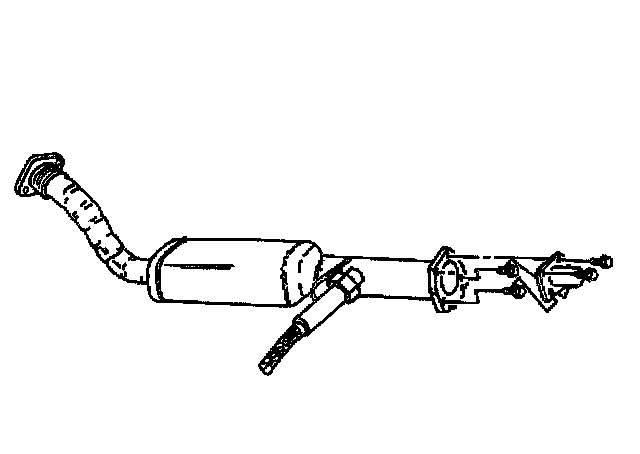

9. Connect the heated oxygen sensor (HO2S) wiring harness connector and retainers. Refer to Heated Oxygen Sensor Replacement (H02S2) in Powertrain Management.
10. Inspect the exhaust system for leaks and underbody contact.
11. Lower the vehicle.
