Shift Control Replacement

Removal Procedure





1. Remove the Console Trim Plate. Refer to Trim Plate Replacement - Front Floor Console (Impala) or Trim Plate Replacement - Front Floor Console (Monte Carlo) or Console Replacement - Front Floor (Impala) or Console Replacement - Front Floor (Monte Carlo) in Instrument Panel, Gauges and Warning Indicators.

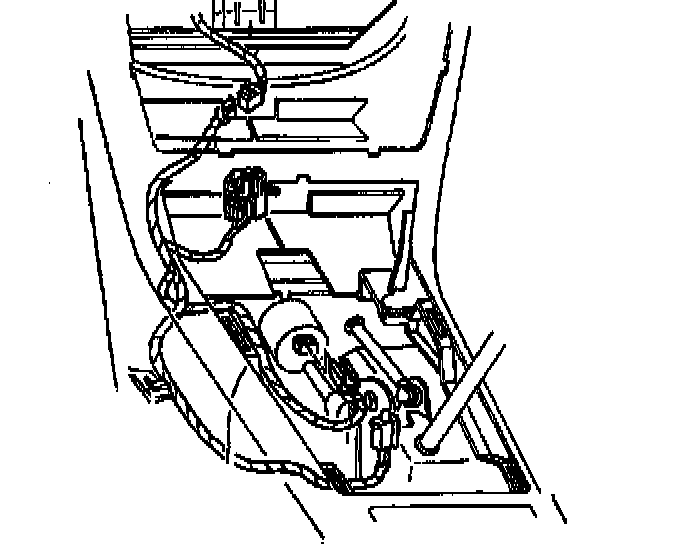

2. Remove the console wiring harness.
3. Remove the console shift control wiring harness.
4. Remove the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Replacement (New Cable Installation Only) or Automatic Transmission Range Selector Cable Replacement (At Manual Shaft) or Automatic Transmission Range Selector Cable Replacement (At Console Shift Control) or Automatic Transmission Range Selector Cable Replacement (At Column Shift Control).
5. Remove the park/lock cable. Refer to Park Lock Cable Replacement.
6. Disconnect the light bulb and the retainer from the shifter.

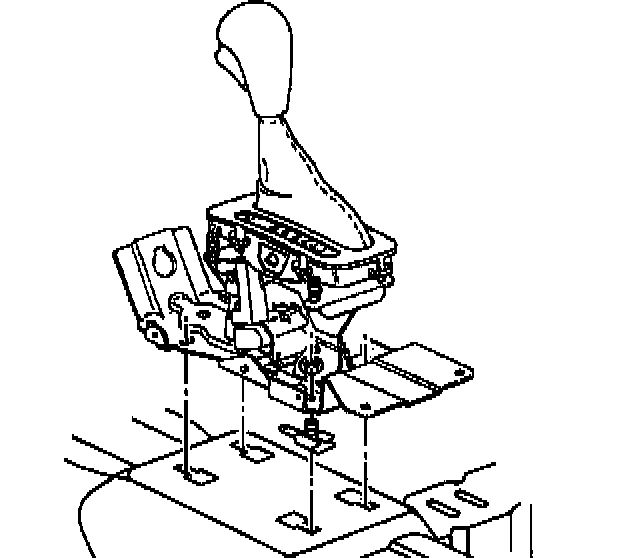

7. Remove the console shift control retaining nuts.
8. Remove the console shift control assembly from the vehicle.

Installation Procedure

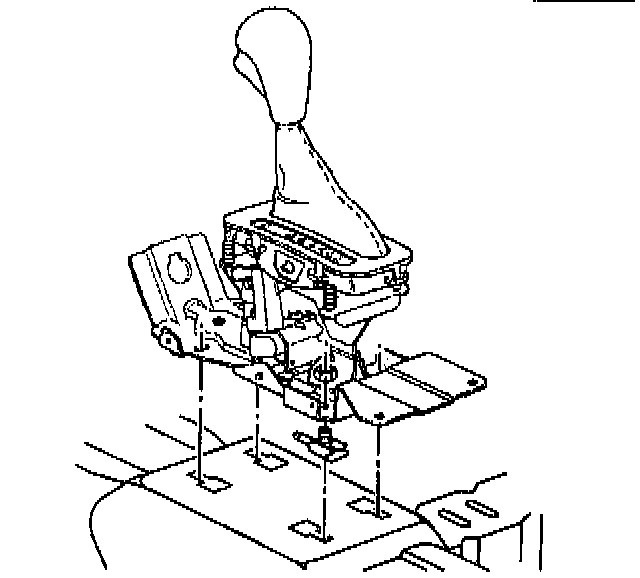

1. Install the console shift control into the vehicle.

Notice: Refer to Fastener Notice in Service Precautions

2. Install the console shift control retaining nuts.
- Tighten the console shift control retaining nuts to 24 Nm (18 ft. lbs.).
3. Install the park/lock cable. Refer to Park Lock Cable Replacement.
4. Install the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Replacement (New Cable Installation Only) or Automatic Transmission Range Selector Cable Replacement (At Manual Shaft) or Automatic Transmission Range Selector Cable Replacement (At Console Shift Control) or Automatic Transmission Range Selector Cable Replacement (At Column Shift Control).





5. Install the console shift control wiring harness.
6. Install the console wiring harness.
7. Install the console trim plate. Refer to Trim Plate Replacement - Front Floor Console (Impala) or Trim Plate Replacement - Front Floor Console (Monte Carlo) or Console Replacement Front Floor (Impala) or Console Replacement Front Floor (Monte Carlo) in Instrument Panel, Gauges and Warning Indicators.
