Home >> Chevrolet >> 2001 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Locks >> Front Side Door Lock, Left

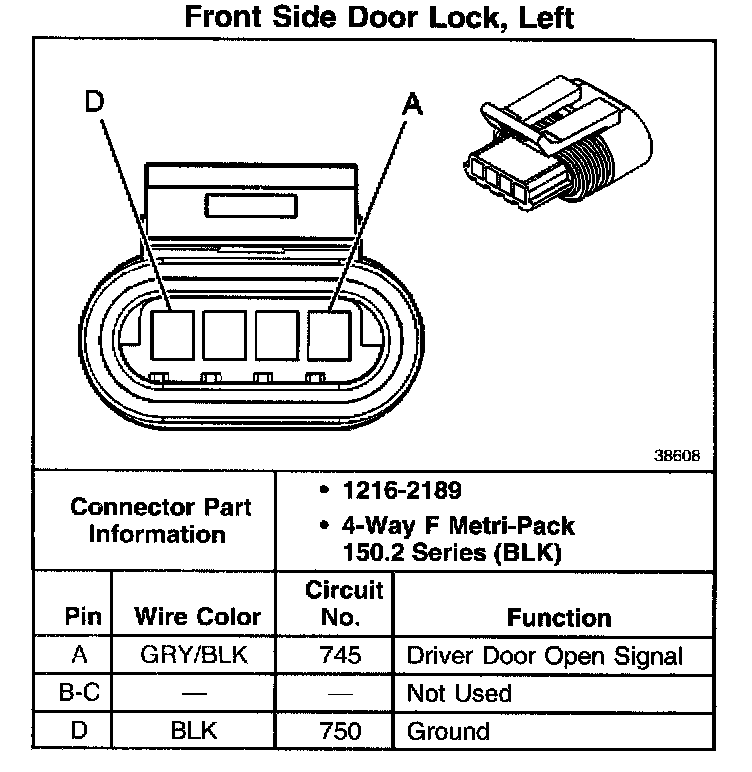

Front Side Door Lock, Left

Front Side Door Lock, Left:
