Home >> Chevrolet >> 2001 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Lumbar Adjuster Switch, Driver >> Lumbar

Lumbar

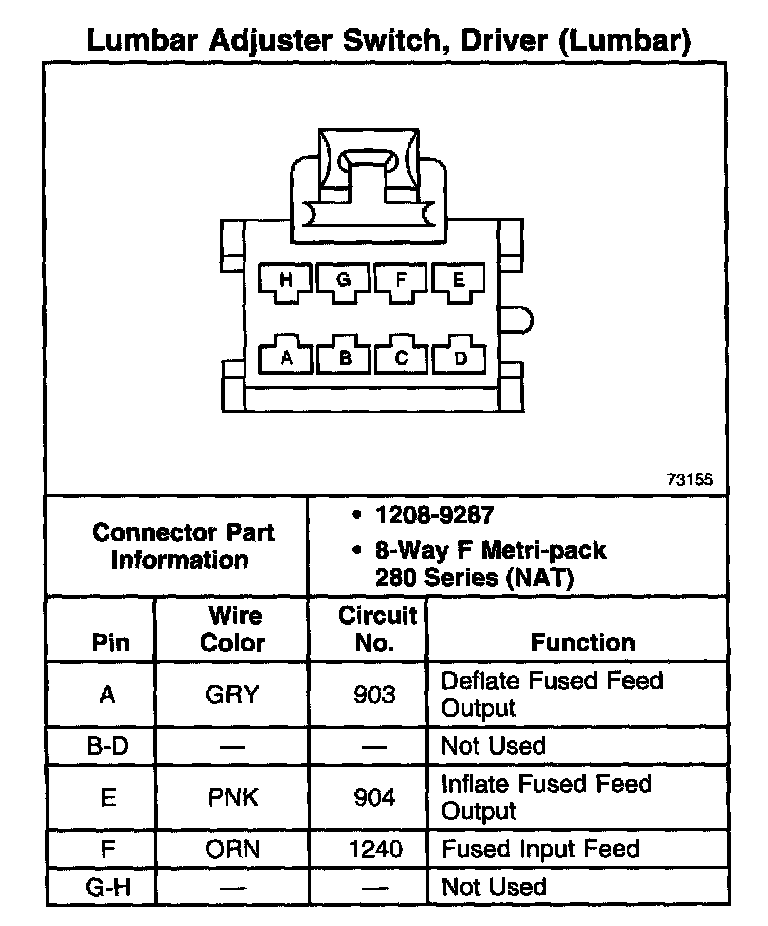

Lumbar Adjuster Switch, Driver (Lumbar):
