Transmission Mount: Service and Repair

Transmission Mount Replacement

Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Support the transmission with a transmission jack.

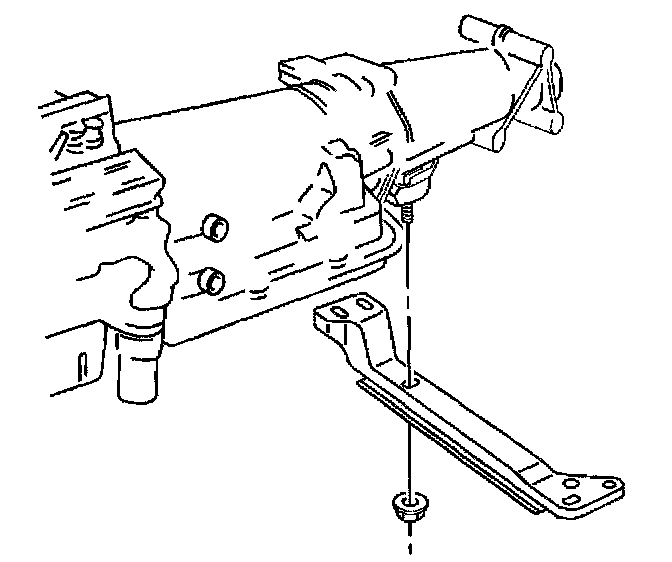

3. Remove the nut that secures the mount to the transmission support.

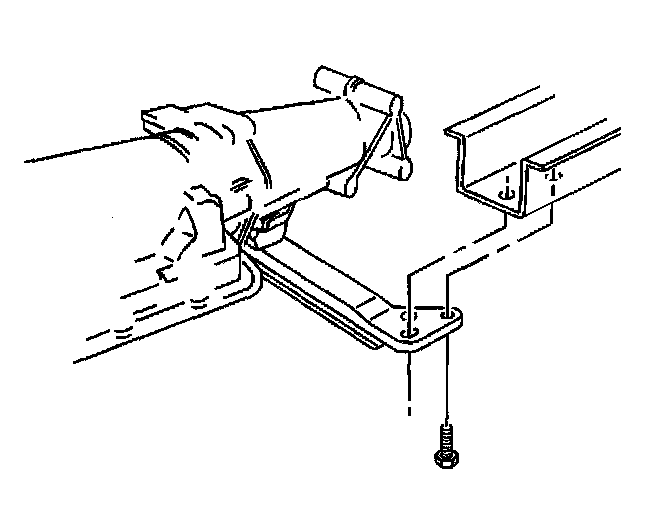

4. Remove the bolts that secure the transmission support to the vehicle.





5. Remove the transmission support from the vehicle.
6. Remove the bolts that secure the mount to the transmission.





7. Remove the mount from the transmission.

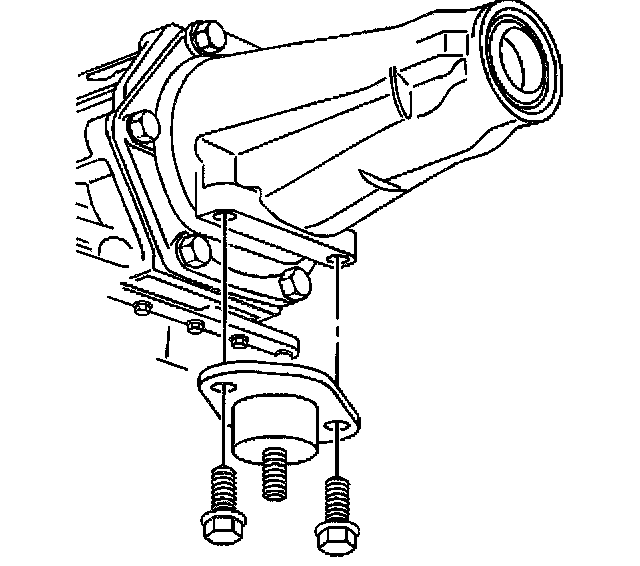

Installation Procedure





1. Install the mount to the transmission.

Notice: Refer to Fastener Notice in Service Precautions.

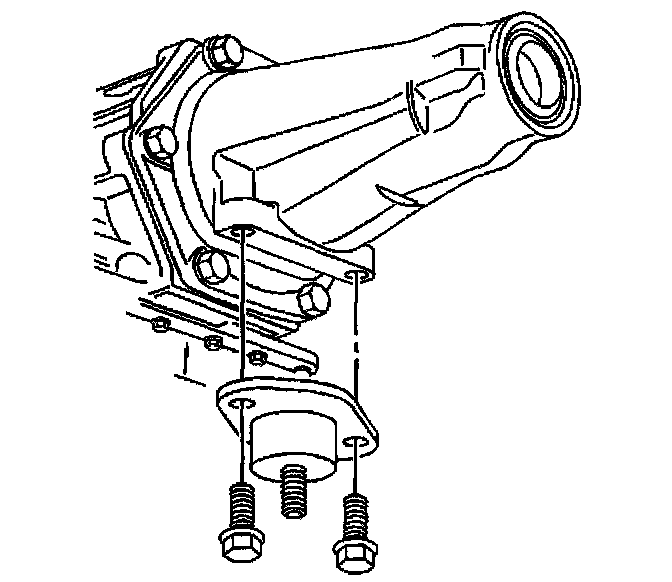

2. Install the bolts that secure the mount to the transmission.
^ Tighten the bolts to 25 Nm (18 ft. lbs.).





3. Install the transmission support to the vehicle.
4. Install the bolts that secure the transmission support to the vehicle.
^ Tighten the bolts to 90 Nm (65 ft. lbs.).

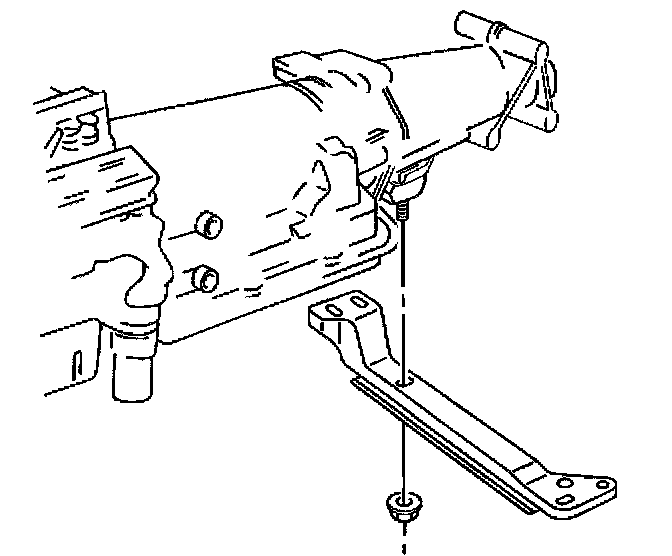

5. Install the nut that secures the mount to the transmission support.
^ Tighten the nut to 57 Nm (42 ft. lbs.).
6. Remove the transmission jack.
7. Lower the vehicle.
