Windshield Washer Reservoir: Service and Repair
WASHER SOLVENT CONTAINER REPLACEMENTREMOVAL PROCEDURE
1. Remove the washer solvent from the washer solvent container.

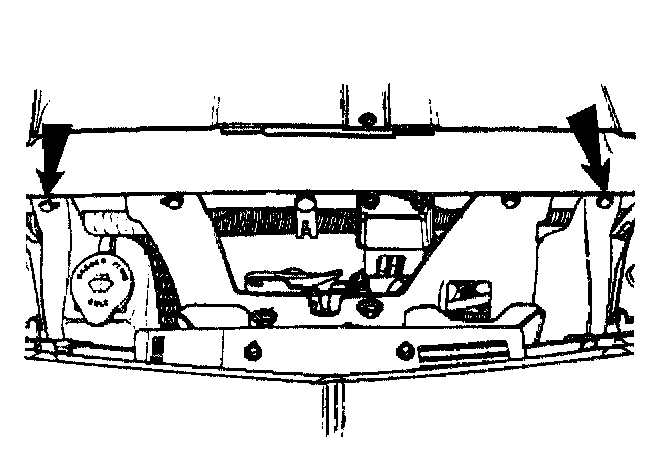

2. Remove the two fasteners from the top of the washer solvent container.
3. Raise and support the vehicle.
4. Remove the air deflector.

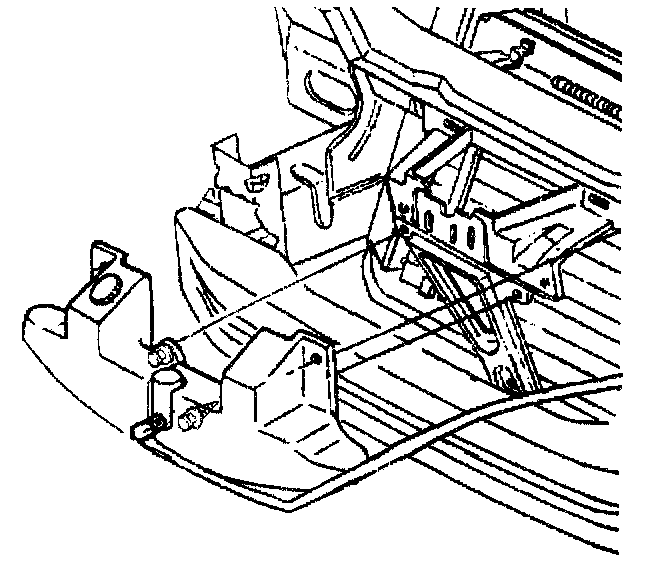

5. Remove the two fasteners from the bottom of the washer solvent container.
6. Remove the washer solvent container.
7. Disconnect the electrical connector from the washer pump.
8. Disconnect the washer hose from the washer pump.
9. Remove the washer pump from the washer solvent container.
INSTALLATION PROCEDURE
1. Install the washer pump into the washer solvent container.
2. Connect the washer hose to the washer pump.
3. Connect the electrical connector to the washer pump.
4. Install the washer solvent container.
5. Install the two fasteners at the bottom of the washer solvent container.
6. Install the air deflector.
7. Lower the vehicle.
8. Install the two fasteners at the top of the washer solvent container.
9. Refill the washer solvent container with washer solvent.
